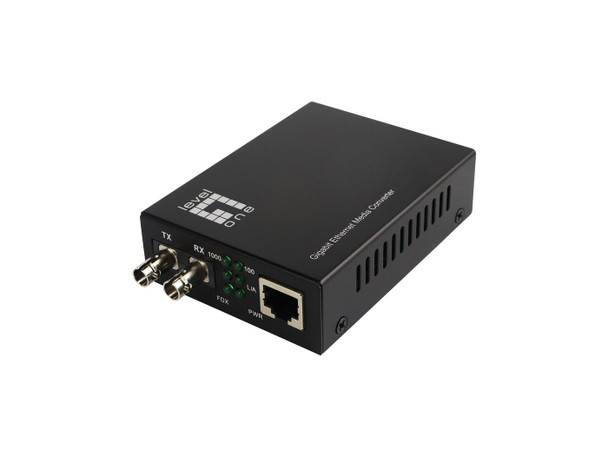

LevelOne GVT-2003 Rj45 To St Gigabit Media GVT-2003

The GVT-2003 SMF ST media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km. The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode. The GVT-2003 is able to operate in temperatures from -10� up to 55� Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19� converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Design



Internal



No


LED indicators



Link, Power


Product colour



Black


Logistics data



Master (outer) case gross weight



31.24 kg


Master (outer) case height



48 cm


Master (outer) case length



39 cm


Master (outer) case width



36 cm


Master (outer) cases per pallet (air)



16 pc(s)


Pallet gross length



80 cm


Pallet gross width



120 cm


Pallet height (air)



158.4 cm


Products per master (outer) case



36 pc(s)


Network



Converter input interface



1000Base-LX, 1000Base-SX


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Duplex system



Full, Half


Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Flow control support



Yes


Jumbo frames



9000


Jumbo frames support



Yes


Link Fault Pass-through (LFP)



Yes


Link Loss Carry Forward (LLCF) supported



Yes


Link Loss Return (LLR) supported



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-10 - 55 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



12 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



5.5 cm


Width (package,cm)



23.5 cm


Packaging content



AC adapter included



Yes


Quick installation guide



Yes


Performance



Fiber mode structure



Single-mode


Maximum transfer distance



20000 m


Wavelength



1310 nm


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



ST


Power



Power consumption (typical)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



9.4 cm


Product Height



2.6 cm


Product Width



7.1 cm


Technical details



Sustainability certificates



CE


Sustainability compliance



Yes


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
