Levelone

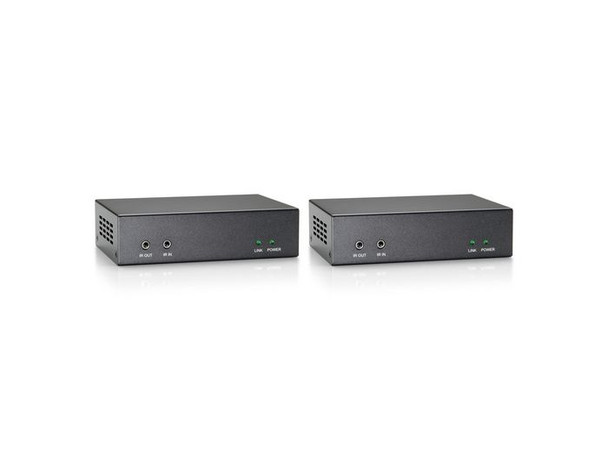

LevelOne HVE-9200 HDMI O.CAT.5 EXT.KIT HVE-9200
- UPC:
- 0000000000000
- MPN:
- HVE-9200
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.
The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.
All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety
Features
Bandwidth
10.2 Gbit/s
Cable types supported
Cat5, Cat5e, Cat6
Colour depth
48 bit
HDCP
Yes
LED indicators
Yes
Material
Metal
Maximum resolution
3840 x 2160 Pixels
Maximum transfer distance
100 m
Supported video modes
1080p
Type
AV transmitter & receiver
Package dimensions
Depth (package,cm)
17 cm
Gross Weight (Package, kg)
1.523 kg
Height (package,cm)
12 cm
Width (package,cm)
30 cm
Packaging content
AC adapter included
Yes
Cables included
AC
Manual
Yes
Packaging data
Package dimensions (WxDxH)
300 x 170 x 120 mm
Ports & interfaces
DC-in jack
Yes
HDMI in
1
Number of HDMI outputs
1
RJ-45 input ports
1
RJ-45 output ports
1
RS-232 input ports
2
Power
Current
1 A
Operating voltage
12 V
Product dimensions
Product Depth
8.5 cm
Product Height
4 cm
Product Width
12.5 cm
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
Weight & dimensions
Receiver dimensions (WxDxH)
85 x 125 x 40 mm
Transmitter dimensions (WxDxH)
85 x 125 x 40 mm
View AllClose
The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.
All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety
Features
Bandwidth
10.2 Gbit/s
Cable types supported
Cat5, Cat5e, Cat6
Colour depth
48 bit
HDCP
Yes
LED indicators
Yes
Material
Metal
Maximum resolution
3840 x 2160 Pixels
Maximum transfer distance
100 m
Supported video modes
1080p
Type
AV transmitter & receiver
Package dimensions
Depth (package,cm)
17 cm
Gross Weight (Package, kg)
1.523 kg
Height (package,cm)
12 cm
Width (package,cm)
30 cm
Packaging content
AC adapter included
Yes
Cables included
AC
Manual
Yes
Packaging data
Package dimensions (WxDxH)
300 x 170 x 120 mm
Ports & interfaces
DC-in jack
Yes
HDMI in
1
Number of HDMI outputs
1
RJ-45 input ports
1
RJ-45 output ports
1
RS-232 input ports
2
Power
Current
1 A
Operating voltage
12 V
Product dimensions
Product Depth
8.5 cm
Product Height
4 cm
Product Width
12.5 cm
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
Weight & dimensions
Receiver dimensions (WxDxH)
85 x 125 x 40 mm
Transmitter dimensions (WxDxH)
85 x 125 x 40 mm
