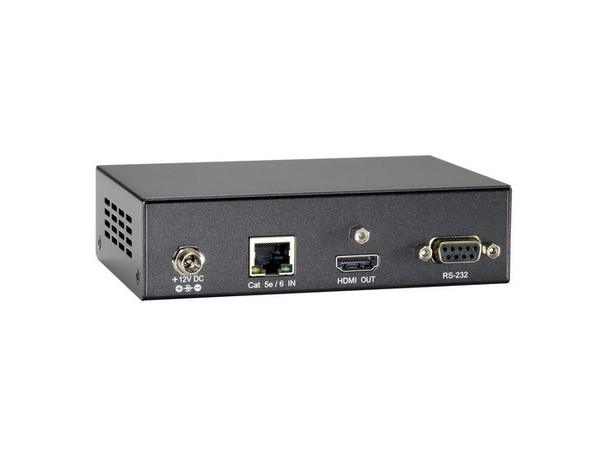

LevelOne HVE-9211R HDMI O.CAT.5 RECEIVER HVE-9211R

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.

Key Features
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety

Features



3D



Yes


Audio output channels



7.1 channels


Audio system



Multichannel


Bandwidth



10.2 Gbit/s


Baud rate



115.2 Kbit/s


Cable types supported



Cat5e, Cat6


Carrier frequency



38 kHz


Colour depth



48 bit


Consumer Electronics Control (CEC) support



Yes


HDCP



Yes


HDCP & EDID bypass



Yes


LED indicators



Link, Power


Material



Metal


Maximum resolution



3840 x 2160 Pixels


Maximum transfer distance



100 m


Plug and Play



Yes


Product colour



Black


Remote control type



IR


Supported video modes



720p, 1080p


Type



AV receiver


Package dimensions



Depth (package,cm)



15 cm


Gross Weight (Package, kg)



0.722 kg


Height (package,cm)



12 cm


Width (package,cm)



19 cm


Packaging content



AC adapter included



Yes


Cables included



AC


Manual



Yes


Remote control included



Yes


Packaging data



Package dimensions (WxDxH)



190 x 150 x 120 mm


Ports & interfaces



3.5 mm (1/8-inch) in



Yes


3.5 mm (1/8-inch) out



Yes


DC-in jack



Yes


Number of HDMI outputs



1


RJ-45 input ports



1


RS-232 input ports



1


Power



Current



1 A


Operating voltage



12 V


Power consumption (receiver) (max)



400 mA


Product dimensions



Net Weight (Product, kg)



0.407 kg


Product Depth



8.5 cm


Product Height



4 cm


Product Width



12.5 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Weight & dimensions



Receiver dimensions (WxDxH)



125 x 85 x 40 mm


Receiver weight



380 g
