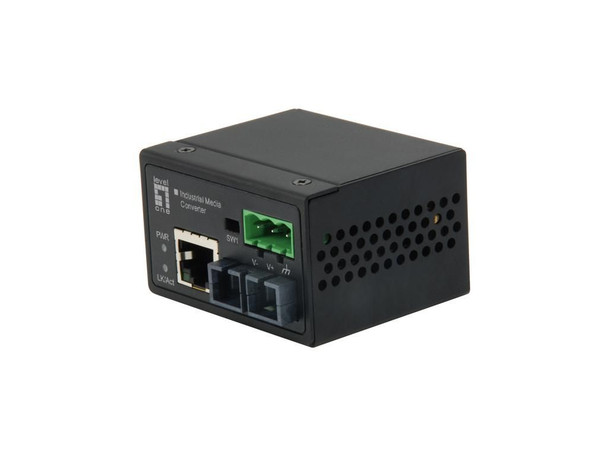

LevelOne IEC-4001 Fast Eth.Mini Media Converter IEC-4001

LevelOne IEC-4001 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.

- 10/100BaseT to 100Base-FX
- Rugged aluminium case design in a mini size form factor
- 18V-36VAC & 12V-60VDC with polarity protection
- Link Fault Pass through (LFP) function
- Supports switch and pure converter mode
- Surge & ESD protection
- Maximum noise & interference immunity
- 40�C to 75�C (-40�F to 167�F) operating temperature range
- DIN-Rail or panel mount installation

Design



Housing material



Aluminium


Internal



No


LED indicators



Activity, Power, Status


Product colour



Black


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Converter input interface



10Base-T, 100Base-TX


Converter output interface



100Base-FX


Duplex system



Full, Half


Ethernet interface type



Fast Ethernet


Ethernet LAN data rates



10, 100


Maximum data transfer rate



100 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Store-and-forward



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 75 �C


Package dimensions



Depth (package,cm)



10.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



6.5 cm


Width (package,cm)



16 cm


Packaging content



Quick installation guide



Yes


Performance



Fiber mode structure



Multi-mode


Maximum transfer distance



2000 m


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SC


Fiber ports quantity



1


Power



Input voltage



12 - 60 V


Power consumption (typical)



1.44 Watt


Product dimensions



Net Weight (Product, kg)



0.09 kg


Product Depth



4.9 cm


Product Height



3.6 cm


Product Width



5.9 cm


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
