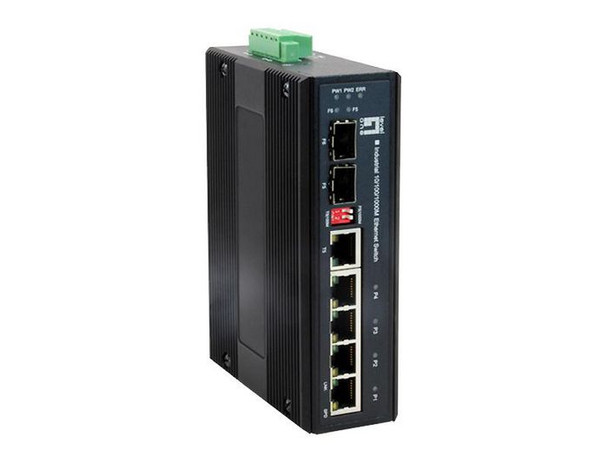

LevelOne IES-0600 Ind.Gigabit Ethernet Switch IES-0600
- UPC:
- 4015867188491
- MPN:
- IES-0600
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
LevelOne IES-0600 Industry Ethernet Switch provides 4 ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers.
- 4 10/100/1000Base-T ports
- 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot
- 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex,
- Auto-Negotiation, Auto-MDI/MDIX
- 40°C to 75°C (-40°F to 167°F) operating temperature range
- DIN-Rail mount installation
- Metal case design and compliant with IP30 standard
Data transmission
Jumbo frames
10000
MAC address table
1024 entries
Packet buffer memory
1 MB
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148000 pps
Store-and-forward
Yes
Switching capacity
12 Gbit/s
Design
DIN rail mounting
Yes
Housing material
Metal
International Protection (IP) code
IP30
LED indicators
Activity, Link, Power
Product colour
Black
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Flow control support
Yes
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 °C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 85 °C
Other features
Input voltage
5 - 56 V
Terminal block port
Yes
Package dimensions
Depth (package,cm)
16.5 cm
Gross Weight (Package, kg)
0.72 kg
Height (package,cm)
6.5 cm
Width (package,cm)
21.5 cm
Packaging data
Quick start guide
Yes
Performance
Harmonized System (HS) code
85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
1
Power
Input voltage
5 - 56 V
Power protection features
Overload, Reverse polarity
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
0.62 kg
Product Depth
10.5 cm
Product Height
3.8 cm
Product Width
4 cm
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
