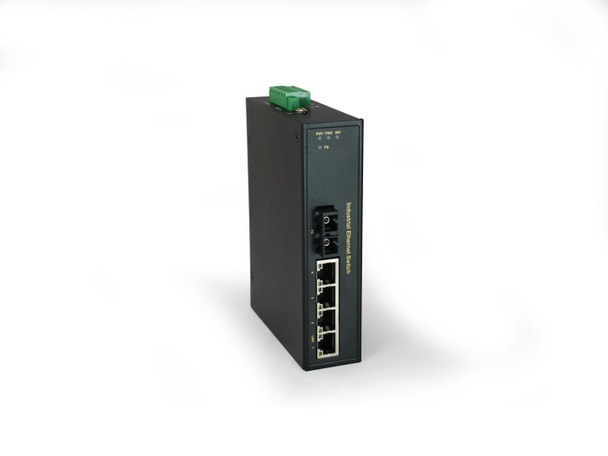

LevelOne IFP-0503 FAST ETH. IND. POE SW IFP-0503
- UPC:
- 4015867192405
- MPN:
- IFP-0503
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The LevelOne IFP-0503 Industrial Fast Ethernet PoE+ Switch provides 4 ports at 10/100M TX PSE to supply power and internet to PoE+ compatible Powered Devices (PD) in a large-scale indoor or outdoor network setting. The IFP-0503 supplies 15.4 Watts for IEEE802.3af or 30 Watts (Max 36W) for IEEE802.3at per port. Duplex mode Fibre allows installation up to 30km from the power source. With an industrial-standard DIN-rail mount for easy cabinet deployment and metal casing rated to IP30, this ruggedized switch is engineered for installation in industrial settings where humidity, dust, high or low operating temperatures or vibrations could cause standard devices to fail.
Data transmission
MAC address table
1000 entries
Packet buffer memory
1 MB
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148000 pps
Store-and-forward
Yes
Switching capacity
1 Gbit/s
Design
Certification
FCC, CE, RoHS, VCCI EN55022/24 EN55011 EN50121-3-2 EN60068-2-6 EN60068-2-27 EN60068-2-32
DIN rail mounting
Yes
Housing material
Metal
International Protection (IP) code
IP30
LED indicators
Activity, Link, Power
Product colour
Black
Rack mounting
No
Safety
EN60950-1
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case gross weight
8 kg
Master (outer) case height
32 cm
Master (outer) case length
38 cm
Master (outer) case width
45 cm
Products per master (outer) case
15 pc(s)
Management features
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Flow control support
Yes
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 °C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 85 °C
Optical fiber
Fiber type
Single-mode
Transmission distance (max)
30 km
Other features
Terminal block port
Yes
Package dimensions
Depth (package,cm)
6 cm
Gross Weight (Package, kg)
0.47 kg
Height (package,cm)
18.5 cm
Width (package,cm)
12 cm
Packaging data
DIN rail included
Yes
Quick start guide
Yes
Terminal block included
Yes
Wall mounting kit
Yes
Performance
Flash memory
1 MB
Harmonized System (HS) code
85176990
Internal memory
1 MB
Mean time between failures (MTBF)
150000 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
4
Fiber optic connector
SC
Fiber ports quantity
1
Power
Input voltage
0 - 56 V
Output current
1 A
Output voltage
24 V
Power consumption (typical)
3.76 Watt
Power source
DC/PoE
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 Watt
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
126 Watt
Product dimensions
Net Weight (Product, kg)
0.37 kg
Product Depth
5 cm
Product Height
16.5 cm
Product Width
11.4 cm
Sustainability
Sustainability certificates
CE, Federal Communications Commission (FCC)
Sustainability compliance
Yes
Technical details
Master (outer) cases per pallet (sea)
12 pc(s)
Pallet gross length
80 cm
Pallet gross width
120 cm
Pallet height (air)
162 cm
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
