Levelone

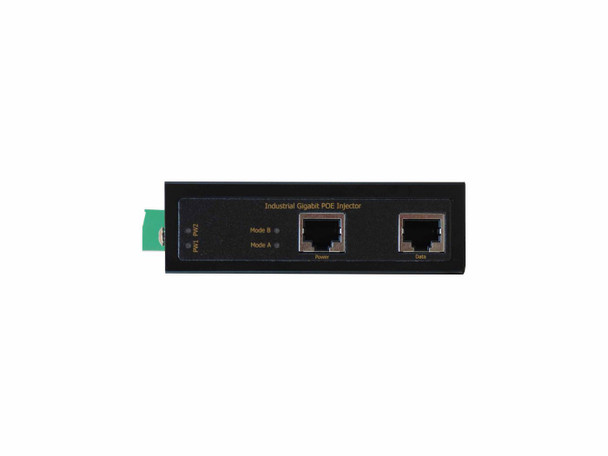

LevelOne IGP-0101 LEVELONE POE+ INJECTOR 36W IGP-0101
(No reviews yet)
Write a Review
- UPC:
- 4015867196045
- MPN:
- IGP-0101
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The LevelOne IGP-0101 is rugged designed 30 Watts, high power Single port industrial POE Injector is equipped with our high efficiency ColdDesign technology to provide 30 Watts power to your security equipment. The ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48~56 VDC to deliver 30Watts power to meet IEEE802.3af/at standard. It is being rigorously tested for your Security, Transportation and Telco application.
Key Features
- PoE ports can support the IEEE 802.3at standard and power up 30W devices
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 40�C to 75�C operating temperature range
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case
- Redundant power inputs with Terminal Block
Features
Certification
CE, FCC, RoHS, VCCI
LED indicators
PoE, Power
Product colour
Black
Safety
EN60950-1� EN55022/24, EN50155, EN55011, EN50121-3-2 EN60068-2-7, EN60068-2-27, EN60068-2-32
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85044095
Network
Duplex system
Full
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10, 100, 1000
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Depth (package,cm)
6.5 cm
Gross Weight (Package, kg)
0.37 kg
Height (package,cm)
21.5 cm
Width (package,cm)
16.5 cm
Packaging content
Manual
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Output power
36 Watt
Power over Ethernet (PoE) voltage
56 V
Product dimensions
Net Weight (Product, kg)
0.14 kg
Product Depth
3.2 cm
Product Height
10.35 cm
Product Width
8.15 cm
Technical details
Harmonized System (HS) code
85044090
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
View AllClose
Key Features
- PoE ports can support the IEEE 802.3at standard and power up 30W devices
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 40�C to 75�C operating temperature range
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case
- Redundant power inputs with Terminal Block
Features
Certification
CE, FCC, RoHS, VCCI
LED indicators
PoE, Power
Product colour
Black
Safety
EN60950-1� EN55022/24, EN50155, EN55011, EN50121-3-2 EN60068-2-7, EN60068-2-27, EN60068-2-32
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85044095
Network
Duplex system
Full
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10, 100, 1000
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Depth (package,cm)
6.5 cm
Gross Weight (Package, kg)
0.37 kg
Height (package,cm)
21.5 cm
Width (package,cm)
16.5 cm
Packaging content
Manual
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Output power
36 Watt
Power over Ethernet (PoE) voltage
56 V
Product dimensions
Net Weight (Product, kg)
0.14 kg
Product Depth
3.2 cm
Product Height
10.35 cm
Product Width
8.15 cm
Technical details
Harmonized System (HS) code
85044090
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
