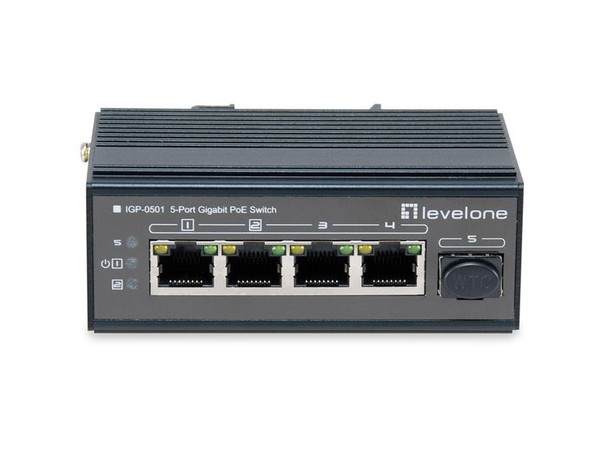

LevelOne IGP-0501 5-Port Gigabit Industrial IGP-0501

LevelOne IGP-0501 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 1 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

Design



DIN rail mounting



Yes


Housing material



Metal


International Protection (IP) code



IP30


LED indicators



Activity, Power


Product colour



Black


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



13 kg


Master (outer) case height



36 cm


Master (outer) case length



56.6 cm


Master (outer) case width



42.2 cm


Products per master (outer) case



28 pc(s)


Products per pallet



24 pc(s)


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-30 - 65 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



6 cm


Gross Weight (Package, kg)



0.48 kg


Height (package,cm)



11 cm


Width (package,cm)



7 cm


Packaging data



Quick start guide



Yes


Terminal block included



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



4


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



4


SFP module slots quantity



1


Power



DC input voltage



48 - 57 V


Power supply included



No


Surge protection



Yes


Surge protection voltage



6 kV


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



4


Power over Ethernet (PoE) power per port



30 Watt


Product dimensions



Net Weight (Product, kg)



0.37 kg


Product Depth



3.6 cm


Product Height



10.1 cm


Product Width



6.5 cm


Technical details



Pallet gross length



80 cm


Pallet gross width



120 cm


Pallet height (air)



159 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
