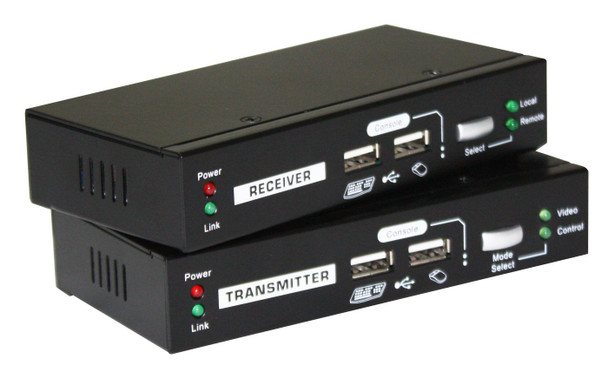

LevelOne KVM-9036 Kvm Over Cat.5 Extender KVM-9036

The KVM-9036 Cat.5 USB Extender Kit is a pair of devices (Transmitter and Receiver) for highdensity applications where you want full use of the keyboard, mouse, and monitor, but there is no room for a server nearby.It allows users to access a computer, server or KVM switch up to 100m away. Or for applications where you want to put all computers in a safe place, all that is needed on the desktop is a single keyboard, monitor, and mouse.KVM-9036 has auto-adjustable RGB gain/delay control capability for superior video performance.

Features



Cable types supported



Cat5, Cat5e


Connectivity technology



Wired


Firmware upgradeable



Yes


KVM port selection



Hotkeys, Push-buttons


LED indicators



Yes


Material



Metal


Maximum analog resolution



1920 x 1200 Pixels


Maximum transfer distance



100 m


On Screen Display (OSD)



Yes


Plug and Play



Yes


Product colour



Black


Type



Transmitter & receiver


USB 2.0 ports quantity



2


Logistics data



Master (outer) case gross weight



21.3 kg


Master (outer) case height



43 cm


Master (outer) case length



37 cm


Master (outer) case width



44 cm


Pallet gross height



11.5 cm


Pallet gross length



94 cm


Pallet gross width



135 cm


Products per master (outer) case



12 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-5 - 65 �C


Package dimensions



Depth (package,cm)



17.6 cm


Gross Weight (Package, kg)



1.17 kg


Height (package,cm)



13.9 cm


Width (package,cm)



20.4 cm


Packaging content



AC adapter included



Yes


Cables included



KVM


Quick installation guide



Yes


Ports & interfaces



USB port type



USB Type-B


Product dimensions



Net Weight (Product, kg)



0.9 kg


Receiver



Receiver local keyboard/mouse port type



USB


Receiver local video port type



VGA


RJ-45 ports quantity (receiver)



1


Technical details



Sustainability certificates



CE, Federal Communications Commission (FCC), UKCA, WEEE


Sustainability compliance



Yes


Transmitter



RJ-45 ports quantity (transmitter)



1


Transmitter local keyboard/mouse port type



USB


Transmitter local video port



Yes


Transmitter local video port type



VGA


Transmitter video port type



VGA


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Weight & dimensions



Receiver depth



6.5 cm


Receiver height



2.6 cm


Receiver weight



586 g


Receiver width



13.1 cm


Transmitter depth



6.5 cm


Transmitter height



2.6 cm


Transmitter weight



586 g


Transmitter width



13.1 cm
