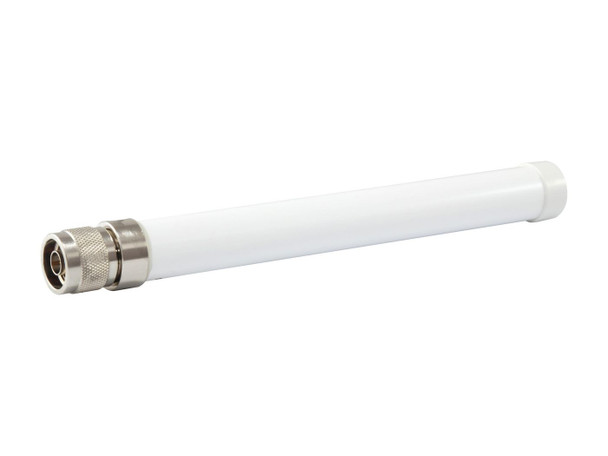

LevelOne OAN-4058 5Dbi/8Dbi 2.4Ghz/5Ghz Dual OAN-4058

The LevelOne OAN-4058 is an omni-directional antenna operating on the 2.4 GHz and 5GHz frequency that can be mounted either indoors or outdoors. The antenna�s gain value 2.4GHz/5GHz is 5dBi/8dBi , and if mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30�C up to 60�C, as well as rain, snow, dust and other harsh conditions.

Features



Antenna connector type



N-type


Antenna type



Omni-directional antenna


Connector gender



Female


Polarization



Vertical polarization


Product colour



White


Voltage Standing Wave Ratio (VSWR)



2


Logistics data



Harmonized System (HS) code



85177100


Master (outer) case gross weight



11 kg


Master (outer) case height



29 cm


Master (outer) case length



56 cm


Master (outer) case volume



50 cm�


Master (outer) case width



48 cm


Products per master (outer) case



50 pc(s)


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-30 - 60 �C


Package dimensions



Depth (package,cm)



6 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



26.5 cm


Width (package,cm)



7 cm


Packaging content



Package type



Blister


Quantity per pack



1 pc(s)


Performance



Antenna gain (2.4 GHz)



5 dBi


Antenna gain (5 GHz)



8 dBi


Antenna gain level (max)



8 dBi


Frequency band



2.4 - 5 GHz


Horizontal beam width (2.4 GHz)



360 �


Horizontal beam width (5 GHz)



360 �


Impedance



50 ?


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Vertical beam width (2.4 GHz)



51.7 �


Vertical beam width (5 GHz)



27.7 �


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



20.3 cm


Product Height



2.2 cm


Product Width



2.2 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
