LevelOne POI-3000 POI-3000 High Power PoE POI-3000
(No reviews yet)
Write a Review
- UPC:
- 4015867158111
- MPN:
- POI-3000
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Advanced PoE Solution

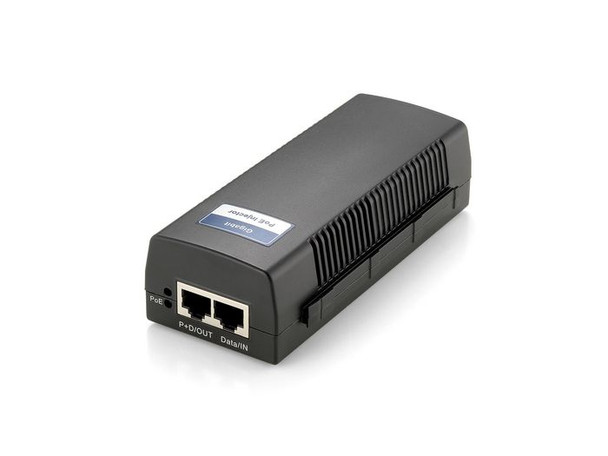

The LevelOne POI-3000 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , POI-3000 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in POI-3000, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
- Up to 30W of PoE Power Feeding on 2-pairs
- IEEE 802.3at Compliant
- IEEE 802.3af backward compatible
- Compatible with IEEE 802.3af or Legacy PoE applications
- Safe on Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non�standard Ethernet Terminals
- Supports 10/100/1000Base-T LAN environment
- Unique interlocking feature for easy installation
Features
Certification
RoHS Compliant, CE/FCC
LED indicators
PoE, Power
Product colour
Black
Logistics data
Harmonized System (HS) code
85044095
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10, 100, 1000
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
0 - 45 �C
Package dimensions
Depth (package,cm)
12.5 cm
Gross Weight (Package, kg)
2.19 kg
Height (package,cm)
21 cm
Width (package,cm)
5.5 cm
Packaging content
Number of products included
1 pc(s)
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Input current
0.8 A
Output power
30 Watt
Product dimensions
Net Weight (Product, kg)
2.09 kg
Product Depth
3.55 cm
Product Height
17.35 cm
Product Width
5.5 cm
Technical details
Harmonized System (HS) code
85044090
Vendor information
Brand Name
LevelOne
Warranty
2 Year(s)
View AllClose
The LevelOne POI-3000 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , POI-3000 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in POI-3000, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
- Up to 30W of PoE Power Feeding on 2-pairs
- IEEE 802.3at Compliant
- IEEE 802.3af backward compatible
- Compatible with IEEE 802.3af or Legacy PoE applications
- Safe on Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non�standard Ethernet Terminals
- Supports 10/100/1000Base-T LAN environment
- Unique interlocking feature for easy installation
Features
Certification
RoHS Compliant, CE/FCC
LED indicators
PoE, Power
Product colour
Black
Logistics data
Harmonized System (HS) code
85044095
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10, 100, 1000
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
0 - 45 �C
Package dimensions
Depth (package,cm)
12.5 cm
Gross Weight (Package, kg)
2.19 kg
Height (package,cm)
21 cm
Width (package,cm)
5.5 cm
Packaging content
Number of products included
1 pc(s)
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Input current
0.8 A
Output power
30 Watt
Product dimensions
Net Weight (Product, kg)
2.09 kg
Product Depth
3.55 cm
Product Height
17.35 cm
Product Width
5.5 cm
Technical details
Harmonized System (HS) code
85044090
Vendor information
Brand Name
LevelOne
Warranty
2 Year(s)
