Levelone

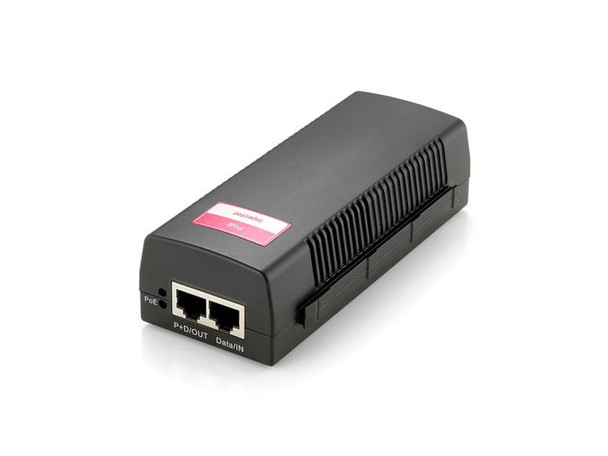

LevelOne POI-3002 POE-PLUS INJECTOR POI-3002
(No reviews yet)
Write a Review
- UPC:
- 4015867182628
- MPN:
- POI-3002
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The LevelOne POI-3002 is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) on existing LAN infrastructure.
With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch are merged together and then transmitted to a PD such as a PoE network camera, through the Ethernet cabling. This allows you to extend the use of your existing hardware investment without needing to buy extra PoE switches.
Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables. These devices can therefore be installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.
- PoE supplies up to 30W of power feeding on 2 pairs
- Remove the need for a bulky power adapter and power line
- Delivers power and data to equipment via a single Ethernet cable
- Remote power feeding up to 100m
- Unique interlocking feature for easy installation
- Surge protected to enhance safety
- Simple Plug and Play installation
- Compact, lightweight design
Features
Certification
FCC Part 15, CE, RoHS
LED indicators
PoE, Power
Pin assignment & polarity
4/5, 7/8
Plug and Play
Yes
Product colour
Black
Logistics data
Harmonized System (HS) code
85044090
Network
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10, 100
Networking standards
IEEE 802.3, IEEE 802.3u
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
0 - 45 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
0 - 70 �C
Package dimensions
Depth (package,cm)
12.5 cm
Gross Weight (Package, kg)
0.45 kg
Height (package,cm)
21 cm
Width (package,cm)
5.5 cm
Packaging content
Number of products included
1 pc(s)
Power cord included
Yes
Quick installation guide
Yes
Packaging data
Package length
8 cm
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Input current
0.8 A
Input voltage
52 V
Output current
0.6 A
Power consumption (max)
30 Watt
Power over Ethernet (PoE) voltage
52 V
Total Power over Ethernet (PoE) budget
30 Watt
Product dimensions
Net Weight (Product, kg)
0.28 kg
Product Depth
3.55 cm
Product Height
17.35 cm
Product Width
5.5 cm
Technical details
Harmonized System (HS) code
85044090
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
View AllClose
With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch are merged together and then transmitted to a PD such as a PoE network camera, through the Ethernet cabling. This allows you to extend the use of your existing hardware investment without needing to buy extra PoE switches.
Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables. These devices can therefore be installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.
- PoE supplies up to 30W of power feeding on 2 pairs
- Remove the need for a bulky power adapter and power line
- Delivers power and data to equipment via a single Ethernet cable
- Remote power feeding up to 100m
- Unique interlocking feature for easy installation
- Surge protected to enhance safety
- Simple Plug and Play installation
- Compact, lightweight design
Features
Certification
FCC Part 15, CE, RoHS
LED indicators
PoE, Power
Pin assignment & polarity
4/5, 7/8
Plug and Play
Yes
Product colour
Black
Logistics data
Harmonized System (HS) code
85044090
Network
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10, 100
Networking standards
IEEE 802.3, IEEE 802.3u
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
0 - 45 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
0 - 70 �C
Package dimensions
Depth (package,cm)
12.5 cm
Gross Weight (Package, kg)
0.45 kg
Height (package,cm)
21 cm
Width (package,cm)
5.5 cm
Packaging content
Number of products included
1 pc(s)
Power cord included
Yes
Quick installation guide
Yes
Packaging data
Package length
8 cm
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Input current
0.8 A
Input voltage
52 V
Output current
0.6 A
Power consumption (max)
30 Watt
Power over Ethernet (PoE) voltage
52 V
Total Power over Ethernet (PoE) budget
30 Watt
Product dimensions
Net Weight (Product, kg)
0.28 kg
Product Depth
3.55 cm
Product Height
17.35 cm
Product Width
5.5 cm
Technical details
Harmonized System (HS) code
85044090
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
