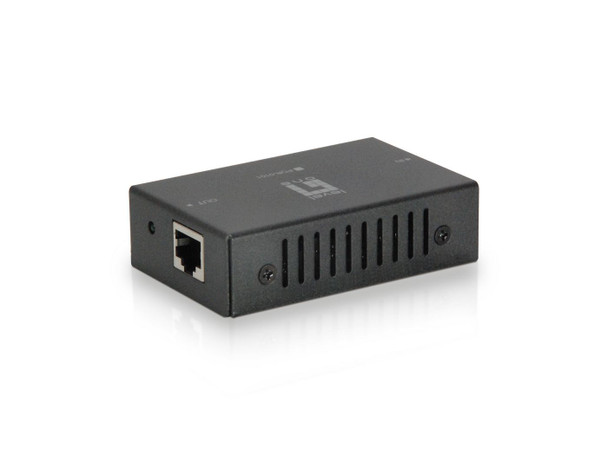

LevelOne POR-0101 10160506 POR-0101

For system integrators looking for a professional solution to help extend their PoE network, POR-0101 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0101, a 1-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters. The delivery though one PoE port and one non-PoE port are adequate to extend network devices such as WLAN Access Points, Network Cameras and other appliances with high-speed to the network for greater deployment flexibility.

- High Power Midspan PoE compliant to simplify deployment and installation
- 10/100Mbps wire speed transmission and reception
- Forwards Power over Ethernet to remote device
- Extends PoE connection for another 100 meters
- Simple Plug and Play installation, no additional power supply required

Design



Certification



FCC Part 15, Class B, CE


LED indicators



PoE, Power


Mounting type



Wall


Product colour



Black


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100Base-T(X)


Networking standards



IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



4.3 cm


Gross Weight (Package, kg)



0.2 kg


Height (package,cm)



14 cm


Width (package,cm)



9.3 cm


Packaging content



Quick start guide



Yes


Performance



Data transfer rate



100 Mbit/s


Maximum transfer distance



100 m


Plug and Play



Yes


Type



Network repeater


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power over Ethernet (PoE) ports quantity



2


Power



Power consumption (max)



2.5 Watt


Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) voltage range



46 - 57 V


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



7 cm


Product Height



2.3 cm


Product Width



8 cm


Technical details



Harmonized System (HS) code



85176990


Sustainability certificates



RoHS


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
