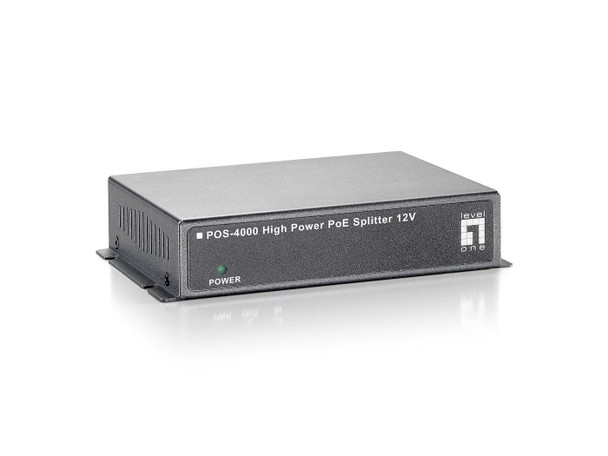

LevelOne POS-4000 PoE/EoP LevelOne POS-4000 Spl POS-4000

The LevelOne POS-4000 is a PoE Splitter working with the POI-4000, FSW-0513 and POH-1260 high power PoE injectors for enabling PoE functionality to network device that requires more power. The POS-4000 is capable of supporting maximum power output 12VDC/2.5A for device that requires power up to 30W. Internal current limit, short-circuit and overload protection are implemented to maintain safety of connected device. Furthermore, using with the POR-0100 PoE repeater can extend the PoE connecting distance beyond additional 100 meters.

- Enables high-power PoE connectivity for non-PoE device
- Max. power output up to 12VDC/2.5A (30W)
- Simple Plug and Play installation

Design



Certification



FCC Rules Part 15 CE


LED indicators



Power


Product colour



Grey


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Package dimensions



Depth (package,cm)



14.8 cm


Gross Weight (Package, kg)



2.35 kg


Height (package,cm)



8 cm


Width (package,cm)



23.2 cm


Packaging content



Package type



Box


Quantity



1


Performance



Cabling technology



10/100Base-T


Networking standards



IEEE 802.3x


Ports & interfaces



DC-out jack



Yes


Ethernet LAN (RJ-45) ports



2


RJ-45 input ports



1


RJ-45 output ports



1


Power



DC output voltage



12V


Output current (12V)



2.5 A


Output power



30 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



2 kg


Product Depth



9 cm


Product Height



2.8 cm


Product Width



12 cm


Vendor information



Brand Name


LevelOne


Warranty



2 Year(s)
