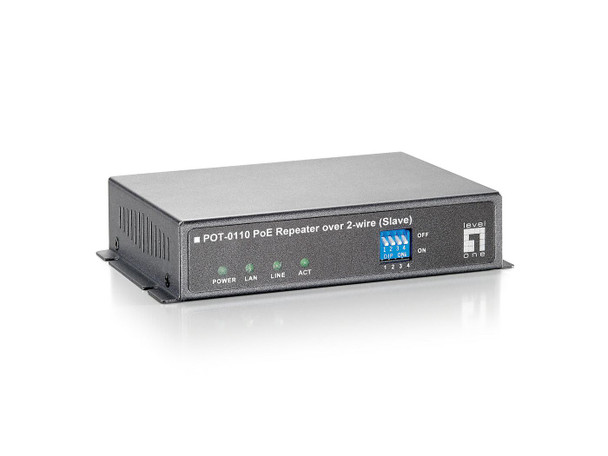

LevelOne POT-0110 PoE/EoP LevelOne POT-0110 Repe POT-0110

The POT system, one master & one slave units, provide a long-reach Ethernet extension with remote Powerover-Ethernet (PoE) capability over a 2-wire line. Connection with a Class 0 PD device, the distance of two-wire 24AWG cables can be up to 400 meters when using a 48Watt high power PoE Switch, FSW-0513/0543. Users may select a fixed data rate for different copper line ranging. The maximum data rate can be up to 60 Mbps full duplex for 2-wire line.

The POT master unit is powered by the local PoE Ethernet network, and transmits both the data and power to the remote slave unit over 2-wire cable. The remote unit regenerates the power and provides the PoE capability to power up the remote PD device up to 15 watts when connecting to 48Watt High Power Switch, FSW-0513. The POT M/S supports the indoor & outdoor models with wall-mount feature.

Equipped with dip switches, the 2-wire line speed can be configured to meet different line gauges and distances. A POT pair offers a cost effective solution for remote power applications such as LAN-to-LAN connectivity, Video Streaming, FTTB, and MDU/MTU over single twisted line.

- Two-wire cables are used to connect 100Mbps Fast Ethernet PoE devices
- Maximum distance up to 400 meters for 24 AWG cable
- Maximum data rate up to 60 Mbps full duplex
- Remote PoE capability for PD devices of WiFi AP, IP camera, IP telephones
- Up to 15 Watts for remote PoE, Depending on PSE power
- Easy installation by indoor & outdoor different models
- Dip Switches for 2-wire line rate settings
- Auto MDIX for 10/100 Base T Ethernet LAN Ports
- Low-Latency for Video/Voice/Data applications

Design



Certification



FCC Rules Part 15, CE


LED indicators



Y, Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100Base-T(X)


Networking standards



IEEE 802.3, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Package dimensions



Depth (package,cm)



23.5 cm


Gross Weight (Package, kg)



2.19 kg


Height (package,cm)



8 cm


Width (package,cm)



14.8 cm


Packaging content



Manual



Yes


Performance



Data transfer rate



60 Mbit/s


Maximum transfer distance



400 m


Type



Network repeater


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


RJ-11 ports quantity



1


Power



Output voltage



57 V


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



2 kg


Product Depth



12 cm


Product Height



2.8 cm


Product Width



9 cm


Vendor information



Brand Name


LevelOne


Warranty



2 Year(s)
