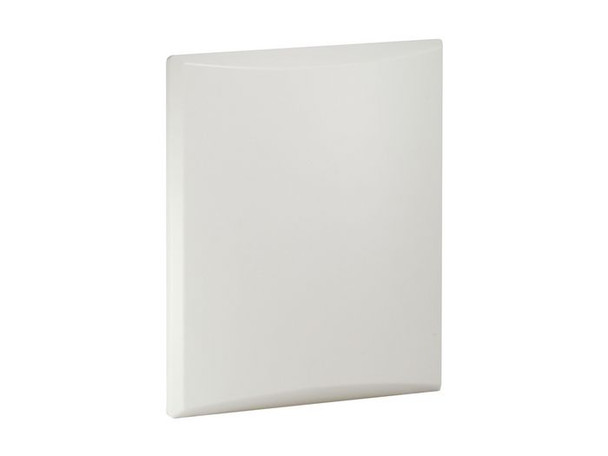

LevelOne WAN-7151 15Dbi 2.4Ghz Directional WAN-7151

The LevelOne WAN-7151 is a directional, dual-polarization antenna that can be mounted either indoors or outside. Dual-polarization offers the flexibility of two different communication channels receiving simultaneously, while a high gain of 15dBi offers better range and signal strength. If mounted outdoors the weatherproof housing can withstand temperatures from minus 30�C up to 60�C, as well as rain, snow, dust and other harsh conditions.

- Provides 15dBi directional operation
- For IEEE 802.11b/g/n/ac Wireless applications in 2.4GHz frequency range
- Directional operation provides extended point to point coverage
- Dual-Polarization to avoid interference
- Low wind loading

Features



Antenna connector type



N-type


Antenna type



Directional antenna


Connector gender



Female


Maximum cable loss with connectors



-10 dB


Polarization



Dual polarization


Product colour



Grey


Protection features



Dust resistant, Snow resistant, Water resistant


Purpose



Indoor & outdoor


Survival wind speed



180 kmh


Voltage Standing Wave Ratio (VSWR)



2.0


Logistics data



Harmonized System (HS) code



85177100


Master (outer) case gross weight



20 kg


Master (outer) case height



37 cm


Master (outer) case length



44.7 cm


Master (outer) case width



46 cm


Products per master (outer) case



10 pc(s)


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-30 - 60 �C


Package dimensions



Depth (package,cm)



35.4 cm


Gross Weight (Package, kg)



1.17 kg


Height (package,cm)



8.4 cm


Width (package,cm)



33.3 cm


Packaging content



Mounting kit



Yes


Package type



Box


Quick installation guide



Yes


Performance



Antenna gain level (max)



15 dBi


Frequency band



2.4 ~ 2.5 GHz


Horizontal beam width



30 �


Impedance



50 ?


Networking standards



IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Vertical beam width



15 �


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



33 cm


Product Height



3.5 cm


Product Width



29.5 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Weight & dimensions



Diameter



90.4 cm
