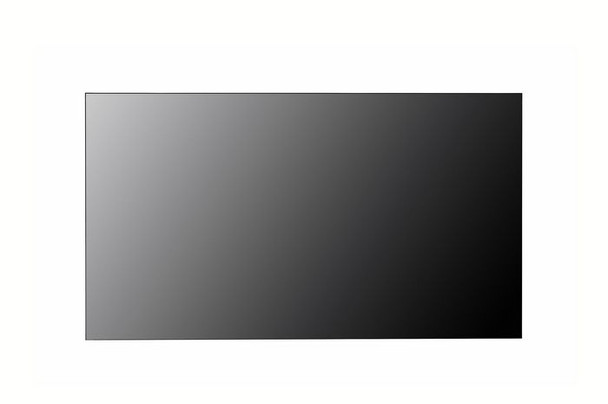

LG 55VM5J-H Digital Signage Display 139.7 55VM5J-H

Seamless Large Screens with Extreme-Narrow Bezel
The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

Image Gap Reduction
The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40?) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.

Wider Viewing Angle
LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in �full-white� mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

Flexible Content Creation
Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn�t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Conformal Coating
Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

EMC Class B Certified
The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation

Audio



Built-in speaker(s)



No


Certificates



Certification



FCC Class "B" / CE / KC ErP - EU Only


Computer system



Built-in processor



No


Computer system



Yes


Internal memory



8 GB


Operating system installed



Web OS


Design



Bezel width (bottom)



0.74 mm


Bezel width (side)



1.75 mm


Bezel width (top)



2.49 mm


Orientation



Horizontal/Vertical


Panel mounting interface



600 x 400


Placement supported



Indoor


Product colour



Black


Product design



Digital signage flat panel


VESA mounting



Yes


Display



Contrast ratio (dynamic)



500000:1


Contrast ratio (typical)



1000:1


Display brightness



500 cd/m�


Display diagonal



55 "


Display number of colours



1.07 billion colours


Display resolution



1920 x 1080 Pixels


Haze rate



28 %


HD type



Full HD


Native aspect ratio



16:9


Native refresh rate



60 Hz


Panel life



60000 Hour


Panel type



IPS


Response time



8 Millisecond


RGB colour space



NTSC


Touchscreen



No


Viewing angle, horizontal



178 �


Viewing angle, vertical



178 �


Features



Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85285210


Operational conditions



Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



26.3 cm


Gross Weight (Package, kg)



13 kg


Height (package,cm)



85.5 cm


Width (package,cm)



135.3 cm


Packaging content



Batteries included



Yes


Cables included



AC, DisplayPort, LAN (RJ-45)


Remote control included



Yes


Performance



HDCP



Yes


HDCP version



1.4/2.2


International Protection (IP) code



IP5X


Open Pluggable Specification (OPS)



Yes


Operating hours (hours/days)



24/7


Purpose



Universal


Ports & interfaces



Audio (L/R) in



1


Audio (L/R) out



1


DisplayPorts quantity



1


DVI port



Yes


DVI-D ports quantity



1


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



2


HDMI input ports quantity



2


HDMI output ports quantity



1


HDMI ports quantity



3


HDMI version



2.2


Remote (IR) input



1


RS-232C



Yes


USB port



Yes


USB ports quantity



1


USB version



2.0


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Heat dissipation



648 BTU/h


Power consumption (off)



0.5 Watt


Power consumption (standby)



105 Watt


Power consumption (typical)



160 Watt


Product dimensions



Net Weight (Product, kg)



10 kg


Product Depth



8.69 cm


Product Height



68.3 cm


Product Width



121.22 cm


Technical details



Sustainability certificates



ENERGY STAR


Vendor information



Brand Name


LG


Warranty



1 Year(s)


Weight & dimensions



Display depth



8.69 cm


Display height



68.3 cm


Display weight



18.8 kg


Display width



121.22 cm
