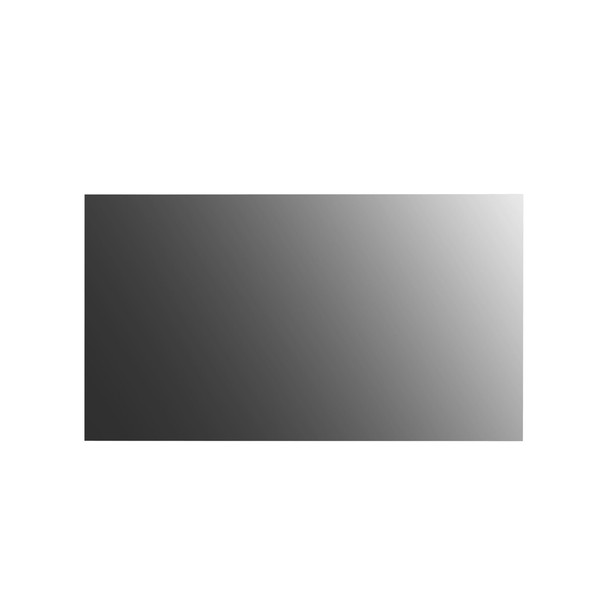

LG 55VSH7J 139.7 cm 55" 1920 x 1080 pixels 24/7 55VSH7J

Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel - 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL - which has been verified by Nemko, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSH7J series is high enough to display vivid colors throughout the screen with no distortion.

Wide Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSH7J series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Uniform Color Expression
Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the VSH7J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

Smart Calibration
Smart Calibration is a solution that enables error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the property differences between the connected displays, eliminating the need for any additional manual color adjustments. Because it can be done in a matter of minutes with just the click of a remote control, this process is so simple. In addition, calibration can be set to automatically occur at regular intervals and brightness can be adjusted based on the surrounding environment, allowing you to always deliver optimum image quality.

Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSH7J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.

High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VSH7J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the VSH7J series, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

Features


Brightness(Typ.) : 700 cd/m2


Bezel: 0.44 mm (Even)


Depth: 86.5 mm


Interface: HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR


Smart Calibration



Design


Bezel width (side)

0.44 mm


VESA mounting

Yes


Placement supported

Indoor


Panel mounting interface

600 x 400 mm


Product colour

Black


Wall mountable

Yes


Orientation

Landscape/Portrait



Weight & dimensions


Height

681.2 mm


Width
10.5 mm


Depth

86.5 mm


Weight
.8 kg



Logistics data


Harmonized System (HS) code

85285210



Operational conditions


Operating temperature (T-T)

0 - 40 -C


Operating relative humidity (H-H)
- 80



Ports & interfaces


USB ports quantity

1


USB version

2.0


Audio input

Yes


Ethernet LAN

Yes


HDCP

Yes


RS-232C

Yes


HDCP version

1.4/2.2


DVI-D ports quantity

1


HDMI ports quantity

2


HDMI input ports quantity

2


IR input ports quantity

1


Audio output

Yes


DisplayPorts in

1


DisplayPorts out

1


Ethernet LAN (RJ-45) ports

2


DVI port

Yes


USB port

Yes



Power


AC input voltage
0-240 V


AC input frequency

50 - 60 Hz


Power consumption (typical)

220 W


Energy efficiency class (SDR)

G


Energy efficiency scale

A to G


Energy consumption (SDR) per 1000 hours
8 kWh


Power consumption (max)

260 W



Display


Panel life

60000 h


Colour depth
bit


Haze rate

28


Native refresh rate

50 Hz


Display diagonal
9.7 cm (55")


Panel type

IPS


Operating hours (hours/days)

24/7


Aspect ratio
:9


Colour gamut

72


Display number of colours

1.07 billion colours


Contrast ratio (typical)
00:1


Response time

8 s


Display brightness

700 cd/m-


Display resolution
20 x 1080 pixels


HD type

Full HD



Packaging data


Package height

855 mm


Cables included

AC, DisplayPort, LAN (RJ-45)


Package depth

263 mm


Package width
53 mm


Mounting kit

Yes


Package weight

23.6 kg


Remote control included

Yes
