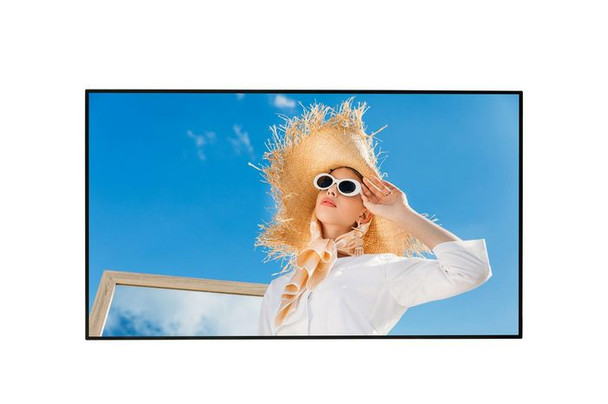

LG 75XS4G-B Digital Signage Display 190.5 75XS4G-B

Deliver Your Message with High Visibility Even Under the Strong Sunlight
With a great brightness of 4,000 nits and UHD picture quality, 75XS4G clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility. QWP enables clear visibility even when the viewer is wearing polarized sunglasses.

High Energy Efficiency
The 75XS4G is energy efficient, allowing for an efficient total cost management while showing content in UHD resolution even with 4,000 nits of high brightness.

Space Blending Slim Design
Given that window-facing displays are usually installed indoors close to the window, 75XS4G's slim design is useful as it can blend naturally inside the store.

Double-sided Usage with Dedicated Bracket
Due to the 75XS4G flat-back design and dedicated bracket, store owner can attach LG�s UHD display to the back for the purpose of displaying a variety of content for both external and internal customers.

Wide Operating Temperature Range
75XS4G can operate at various temperatures of 0-40�C.

Conformal Coating
Conformal Coating improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.

High Performance with webOS
Quad Core SoC can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

Multiple Display Control with a Remote Control
Multiple device controls are available through the RJ45 & RS-232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.

Easy Content Distribution & SW Update
75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), Shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

Web Monitoring (Control Manager)
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Precise Installation Using Leveler Tool
The 75XS4G is equipped with a "Leveler Tool" which shows users how the device is tilt, so the display can be precisely installed.

Alert for Right Direction
The 75XS4G is equipped with a "horizontal sensor", so the display can be installed accurately.

Audio



Built-in speaker(s)



Yes


Number of built-in speakers



2


RMS rated power



20 Watt


Design



Bezel width (bottom)



1.38 cm


Bezel width (side)



1.38 cm


Bezel width (top)



1.38 cm


Orientation



Horizontal/Vertical


Panel mounting interface



600 x 400


Placement supported



Indoor


Product colour



Black


Product design



Digital signage flat panel


VESA mounting



Yes


Display



Contrast ratio (typical)



1200:1


Display brightness



4000 cd/m�


Display diagonal



75 "


Display resolution



3840 x 2160 Pixels


Display technology



IPS


Haze rate



3 %


HD type



4K Ultra HD


Native aspect ratio



16:9


Rated lifetime



50000 Hour


Viewing angle, horizontal



178 �


Viewing angle, vertical



178 �


Logistics data



Harmonized System (HS) code



85285210


Package dimensions



Gross Weight (Package, kg)



51.48 kg


Packaging content



Batteries included



Yes


Cables included



AC, HDMI


Remote control included



Yes


Performance



HDCP



Yes


HDCP version



1.4/2.2


Operating hours (hours/days)



24/7


Purpose



Universal


Ports & interfaces



Audio (L/R) out



1


DisplayPorts in



1


DisplayPorts out



1


DisplayPorts quantity



2


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



2


HDMI ports quantity



2


RS-232C



Yes


USB port



Yes


USB ports quantity



1


USB version



2.0


Wi-Fi



Yes


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



750 Watt


Product dimensions



Net Weight (Product, kg)



39.6 kg


Vendor information



Brand Name


LG


Warranty



1 Year(s)


Weight & dimensions



Display depth



10.4 cm


Display height



95.76 cm


Display weight



39.6 kg


Display width



167.92 cm
