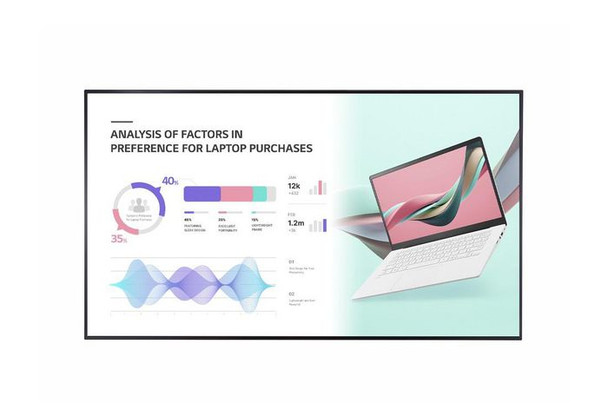

LG 86UH5J-H Signage Display Digital 86UH5J-H

Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.

Audio



Built-in speaker(s)



Yes


Computer system



Internal memory



16 GB


Operating system installed



Web OS


Design



Bezel width (bottom)



1.43 cm


Bezel width (side)



1.43 cm


Bezel width (top)



1.43 cm


Orientation



Horizontal/Vertical


Panel mounting interface



600 x 400


Placement supported



Indoor


Product colour



Black


Product design



Digital signage flat panel


VESA mounting



Yes


Display



Contrast ratio (dynamic)



1000000:1


Contrast ratio (typical)



1100:1


Display brightness



500 cd/m²


Display diagonal



86 "


Display number of colours



1.07 billion colours


Display resolution



3840 x 2160 Pixels


Display technology



IPS


Haze rate



28 %


HD type



4K Ultra HD


LED backlighting type



Edge-LED


Native aspect ratio



16:9


Native refresh rate



120 Hz


Panel life



50000 Hour


Response time



8 Millisecond


RGB colour space



NTSC


Touchscreen



No


Viewing angle, horizontal



178 °


Viewing angle, vertical



178 °


Features



Heat dissipation (max)



955.5 BTU/h


Operational conditions



Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 40 °C


Package dimensions



Depth (package,cm)



28.5 cm


Gross Weight (Package, kg)



13 kg


Height (package,cm)



125 cm


Width (package,cm)



207.3 cm


Packaging content



Batteries included



Yes


Cables included



AC


Remote control included



Yes


Performance



Ambient light sensor



Yes


HDCP



Yes


HDCP version



1.4/2.2


International Protection (IP) code



IP5X


On Screen Display (OSD)



Yes


On Screen Display (OSD) languages



Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish


Operating hours (hours/days)



24/7


Purpose



Commercial


Ports & interfaces



Audio (L/R) in



1


Audio (L/R) out



1


DisplayPorts quantity



1


DVI port



Yes


DVI-D ports quantity



1


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



3


HDMI version



2.2/1.4


Infrared data port



Yes


Remote (IR) input



1


RS-232C



Yes


USB port



Yes


USB ports quantity



1


USB version



2.0


Wi-Fi



Yes


Power



AC input frequency



50-60 Hz


AC input voltage



100 - 240 V


Heat dissipation



733.69 BTU/h


Power consumption (off)



0.5 Watt


Power consumption (sleep)



0.5 Watt


Power consumption (typical)



215 Watt


Product dimensions



Net Weight (Product, kg)



10 kg


Vendor information



Brand Name


LG


Warranty



1 Year(s)


Weight & dimensions



Display depth



6.06 cm


Display height



109.72 cm


Display weight



49 kg


Display width



192.62 cm
