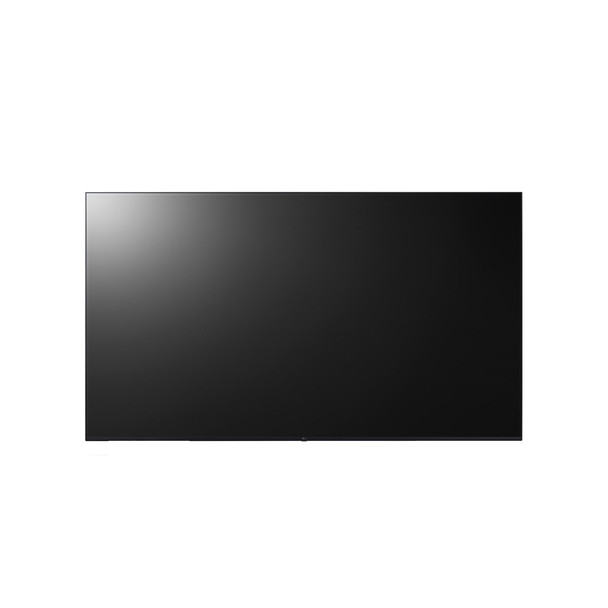

LG 86UL3J-E 86 " Ultra HD Signage Display 3840x2160 8ms Black 86UL3J-B

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the d�cor of the space where the product is installed.

High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

LG's Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems
The UL3J series supports Crestron Connected�* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

Compatible with Video Conference System
For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control* for a smarter video conference.

Easy Menu Setup for Vertical Needs
UL3J series increases users' convenience by organizing frequently used menus* by industry.

Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Features


Brightness(Typ.) : 330 nits


Resolution : ULTRA HD (3,840 x 2,160)


webOS-based High Performance


Built-in Speaker


Compatible with LG's One:Quick Share


Compatible with AV Control Systems



Certificates


Certification

FCC Class "A" / CE



Ports & interfaces


HDMI ports quantity

3


USB ports quantity

2


USB version

2.0


Audio (L/R) out

1


Wi-Fi

Yes


Ethernet LAN

Yes


Ethernet LAN (RJ-45) ports

1


RS-232C

Yes


USB port

Yes



Design


VESA mounting

Yes


Bezel width (side)

1.59 cm


Bezel width (top)

1.59 cm


Bezel width (bottom)

1.99 cm


Product colour

Blue


Panel mounting interface

600 x 400 mm


Orientation

Horizontal



Weight & dimensions


Height

1104 mm


Width

1927 mm


Depth

59.9 mm


Weight

45.2 kg



Packaging content


Cables included

AC


Batteries included

Yes


Remote control included

Yes



Logistics data


Harmonized System (HS) code

85285210



Computer system


Internal memory

8 GB


Operating system installed

Web OS


Computer system

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 80



Audio


Built-in speaker(s)

Yes



Performance


On Screen Display (OSD)

Yes


HDCP

Yes


Operating hours (hours/days)

16/7


HDCP version

1.4/2.2


On Screen Display (OSD) languages

Arabic, Traditional Chinese, Czech, Danish, Dutch, English, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish



Power


AC input voltage

100 - 240 V


Power consumption (off)

0.5 W


Heat dissipation

751 BTU/h


AC input frequency

50 - 60 Hz


Power consumption (typical)

220 W


Power consumption (standby)

154 W



Display


Touchscreen

No


Panel life

30000 h


Viewing angle, vertical

178�


Haze rate

3


Native aspect ratio

16:9


Contrast ratio (dynamic)

1000000:1


Native refresh rate

120 Hz


Display diagonal

2.18 m (86")


Display number of colours

1.07 billion colours


Contrast ratio (typical)

1200:1


Response time

5 ms


LED backlighting type

Direct-LED


Display technology

IPS


Display brightness

330 cd/m�


Viewing angle, horizontal

178�


Display resolution

3840 x 2160 pixels


HD type

4K Ultra HD



Packaging data


Package height

1215 mm


Package depth

228 mm


Package width

2115 mm


Package weight

57.7 kg
