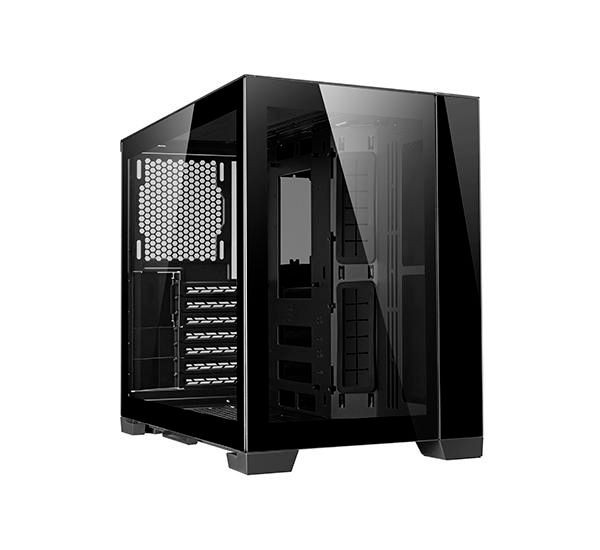

Lian Li O11D MINI-X Mini Tower Black O11D MINI-X

Think Big. Build Small.
O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user�s choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes. and up to 9 fans to cool the chassis.

CONFIGURATION OF YOUR CHOICE
MODULAR BACK PANEL
Decide how many expansion slots you need. Calculate the size of your fans & accessories.
Pick your motherboard type. 3 kinds of back panels to meet your demand!

SIDE RADIATOR CONFIGURATION WITH LONG GPU

The 30mm space behind the side fan / radiator bracket allows users to mount fans, thus efficiently intake fresh air to directly cool the radiator and leaves enough space to install long GPUs in this compact case.

FLAT PUMP STAND
IDEAL FOR MOUNTING THE PUMP DIRECTY AT THE BOTTOM OF THE CASE.

ELEVATED PUMP STAND
MOUNTING THE PUMP NEXT TO THE 240/280MM RADIATOR.
EASILY MATCH INTERFACE.

FLOATING PUMP STAND
MOUNTING ABOVE A 120MM FAN ON A RADIATOR.
EASILY MATCH INTERFACE.

A SERIES OF O11 DYNAMIC
As a member of the O11 family,
the O11D Mini is designed to support a maximum number of radiators to optimize the water-cooling potential,
and this even with a smaller frame.

DUAL-CHAMBER DESIGN FOR CABLE MANAGEMENT
Carried from the design of the O11D series, cables quickly pass to the second chamber through rubber grommets. Multiple tie points and Velcro strap channels are provided to tidy up the cables while the SSD mounting bar helps keep the loose cables all snuggled up to ensure a clean look and prevent the right-side panel from not closing or bulging.

COMPLETE DUST PROTECTION
All 3 ventilation intake sides are equipped
with magnetic dust filters and a removable dust tray
to prevent the dust from entering the case.

OPTIONAL ACCESSORY
O11D MINI VERTICAL GPU KITS
The vertical GPU enabled back panel can be adjusted up and down for clearance of the fans and radiator at the bottom of the case.

Cooling



Bottom fans diameters supported



120, 140


Front fans diameters supported



120


Number of bottom fans supported (max)



3


Number of side fans supported (max)



2


Number of top fans supported (max)



3


Side fans diameters supported



120, 140


Top fans diameters supported



120, 140


Top radiator sizes supported



240, 280, 360


Design



Anti-dust filter



Yes


Form factor



Mini Tower


Material



Aluminium, Steel, Tempered glass


Maximum CPU cooler height



17.9 cm


Maximum graphics card length



39.5 cm


Number of 2.5" bays



2


Number of 3.5" bays



2


Number of expansion slots



7


On/off button



Yes


Product colour



Black


Side window



Yes


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Package dimensions



Gross Weight (Package, kg)



6.5 kg


Ports & interfaces



Audio input



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Supported power supply form factors



SFX


Product dimensions



Net Weight (Product, kg)



5 kg


Product Depth



42 cm


Product Height



38 cm


Product Width



26.95 cm


Storage



Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


Lian Li


Warranty



1 Year(s)
