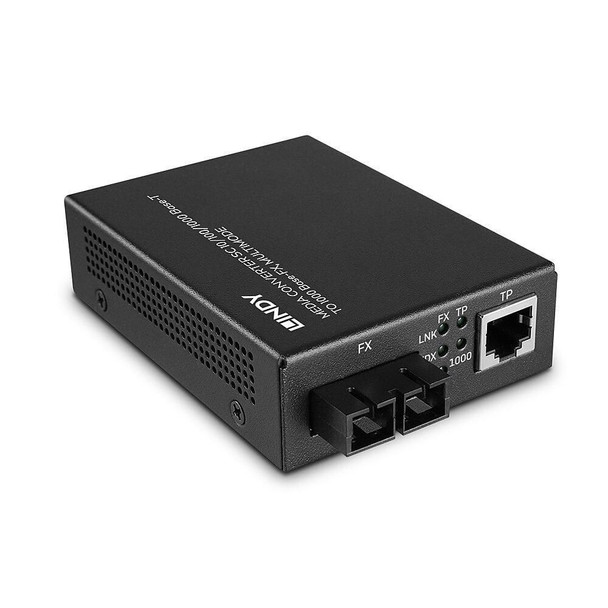

Lindy 25119 Media Converter SC 25119

This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.

The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.

Design



Certification



CE, UKCA, FCC, RoHS, REACH & California Proposition 65


Internal



No


LED indicators



Y, Yes


Product colour



Black


Network



Duplex system



Full, Half


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.3


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



16.5 cm


Gross Weight (Package, kg)



0.39 kg


Height (package,cm)



4.5 cm


Width (package,cm)



15.5 cm


Performance



Fiber cable diameters supported (core/cladding)



50/125, 62.5/125


Fiber mode structure



Multi-mode


Maximum transfer distance



550 m


Wavelength



850 nm


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SC


Fiber ports quantity



2


Power



Output current



1 A


Output voltage



5 V


Product dimensions



Net Weight (Product, kg)



0.39 kg


Product Depth



7 cm


Product Height



2.5 cm


Product Width



9.5 cm


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)
