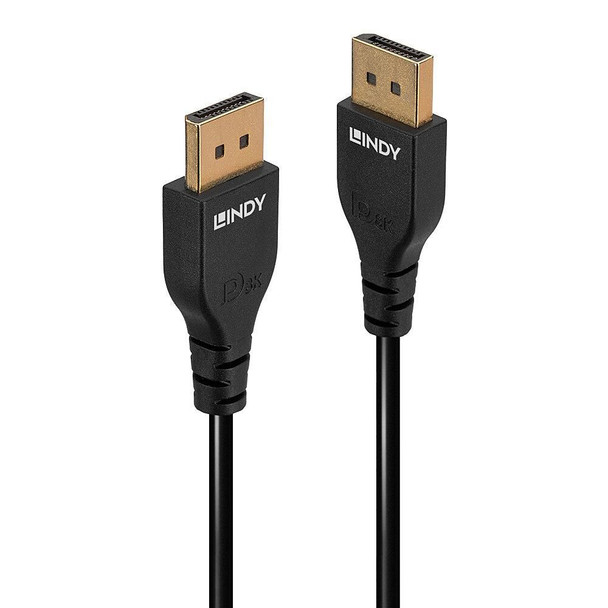

Lindy 36463 3m Slim DisplayPort 1.4 Cable 36463

Professional choice slim DisplayPort 1.4 cable with low profile connectors
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit and 4K 4096x2160@144Hz 4:2:2 10bit
Robust ABS housing with 24K gold-plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
10-year warranty

Lindy’s range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure.

With their compact, high performance design, these cables are ideal for situations where space is limited around source & display ports, such as with gaming monitors or graphics cards.

Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue.

High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Supporting DP 1.4 resolutions including 8K@60Hz and 4K@144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands.

With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display).

Features



AWG wire size



30


Cable length



3 m


Cable shielding



Copper


Cable type



Round cable


Connector 1



DisplayPort


Connector 1 form factor



Straight


Connector 1 gender



Male


Connector 2



DisplayPort


Connector 2 form factor



Straight


Connector 2 gender



Male


Connector contacts plating



Gold


Contact material



Phosphor bronze


Data transfer rate



32.4 Gbit/s


DisplayPort version



1.4


Jacket material



Polyvinyl chloride (PVC)


Maximum refresh rate



144 Hz


Maximum resolution



7680 x 4320 Pixels


Number of shielding layers



3


Product colour



Black


Supported graphics resolutions



4096 x 2160, 7680 x 4320


Supported video modes



4320p


Logistics data



Harmonized System (HS) code



84733080


Operational conditions



Operating temperature (T-T)



10 - 80 °C


Storage temperature (T-T)



0 - 80 °C


Package dimensions



Depth (package,cm)



19.4 cm


Gross Weight (Package, kg)



0.1 kg


Height (package,cm)



2 cm


Width (package,cm)



17.4 cm


Product dimensions



Net Weight (Product, kg)



0.1 kg


Sustainability



Sustainability certificates



REACH, RoHS


Vendor information



Brand Name


Lindy


Warranty



10 Year(s)
