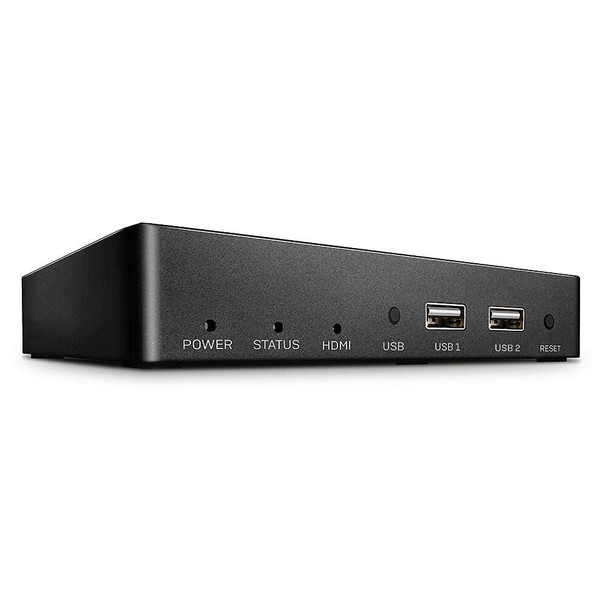

Lindy 38265 KVM over IP Extender. Receiver 38265

Extends HDMI 4K30, USB HID and IR Over an IP network
Supports point to point and point to multipoint installation up to 150m (492.12ft)
HDMI 1.4 & HDCP 1.4 compliant
Requires a Gigabit Ethernet (1000BaseT) compliant network for multipoint installation
2 year warranty

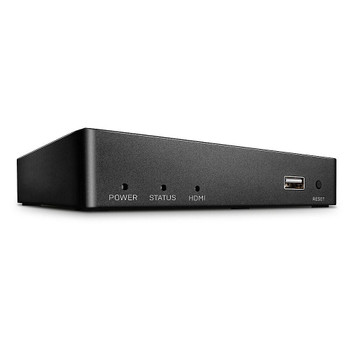

The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This receiver unit must be connected to a transmitter unit (No. 38264 – not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It's also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter Unit (No. 38264 - not included) to be controlled by several consoles each connected to this receiver via a dedicated Ethernet switch or VPN.

This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.

Features



Bandwidth



10.2 Gbit/s


Cable types supported



Cat5e, Cat6


Certification



CE, FCC, REACH


Extended display identification data (EDID)



Yes


HDCP



Yes


LED indicators



Yes


Material



Plastic


Maximum refresh rate



30 Hz


Maximum resolution



3840 x 2160 Pixels


Maximum transfer distance



150 m


Product colour



Black


Type



AV receiver


Operational conditions



Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 55 °C


Storage temperature (T-T)



-10 - 75 °C


Package dimensions



Depth (package,cm)



21.4 cm


Gross Weight (Package, kg)



0.62 kg


Height (package,cm)



17 cm


Width (package,cm)



6 cm


Packaging content



AC adapter included



Yes


Manual



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN



Yes


HDMI version



1.4


Number of HDMI outputs



1


RJ-45 input ports



1


USB ports quantity



2


Power



Input current



2 A


Operating voltage (receiver)



5 V


Product dimensions



Net Weight (Product, kg)



0.62 kg


Product Depth



8.5 cm


Product Height



2.4 cm


Product Width



12.4 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)
