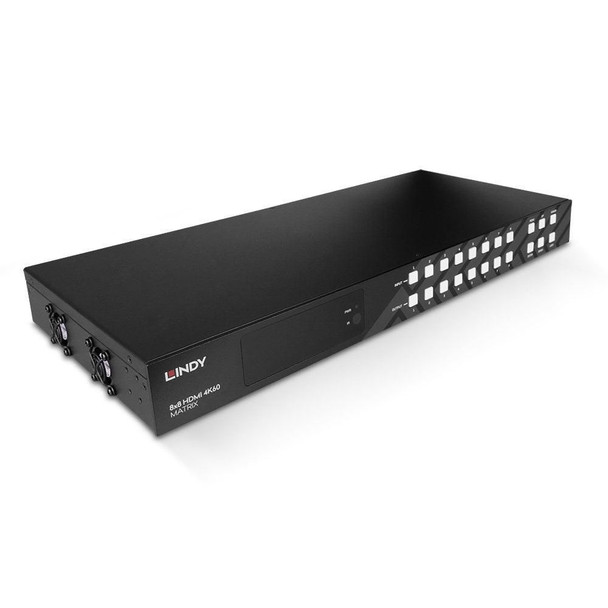

Lindy 38334 8x8 HDMI 4K60 Matrix 38334

Matrix Switches are premium solutions for distributing content from multiple source devices to multiple displays. The Lindy 8x8 HDMI 4K60 Matrix supports HDMI 2.0b 18G signals, allowing for the transmission of clear 4K Ultra HD 60Hz resolutions.
Additional support for High Dynamic Range ensures video content is displayed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail, creating informational multi-display setups in education, or distributing content in commercial installations such as cinemas.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.

As well as HDMI audio pass-through, individual Coax and 3.5mm ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content.

The Audio Return Channel (ARC) feature allows audio to be sent from a TV to an audio system or soundbar over the same HDMI cable that is used to send video to the TV. This eliminates the need for a separate audio cable and simplifies the setup process.

The Matrix also features a downscale function for each output port from 4K to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.

Design



Certification



CP65


Control type



Buttons


Housing colour



Black


Housing material



Metal


Display



Built-in display



Yes


Display type



OLED


Features



Audio formats supported



DTS, LPCM


Bandwidth



18 Gbit/s


EDID management



Yes


HDCP



Yes


HDCP version



2.2


Maximum resolution



3840 x 2160 Pixels


Product type



AV matrix switcher


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



-10 - 45 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



51.9 cm


Gross Weight (Package, kg)



4.06 kg


Height (package,cm)



14 cm


Width (package,cm)



21.7 cm


Packaging content



Manual



Yes


Ports & interfaces



Audio (L/R) out



8


DC-in jack



Yes


HDMI input ports quantity



8


HDMI output ports quantity



8


HDMI version



2.0b


RJ-45 input ports



1


RS-232 ports



1


Power



Input current



5 A


Output voltage



12 V


Power consumption (max)



43 Watt


Product dimensions



Net Weight (Product, kg)



4.06 kg


Product Depth



20 cm


Product Height



4.5 cm


Product Width



44 cm


Technical details



Sustainability certificates



CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA


Sustainability compliance



Yes


Warranty period



2 year(s)


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)
