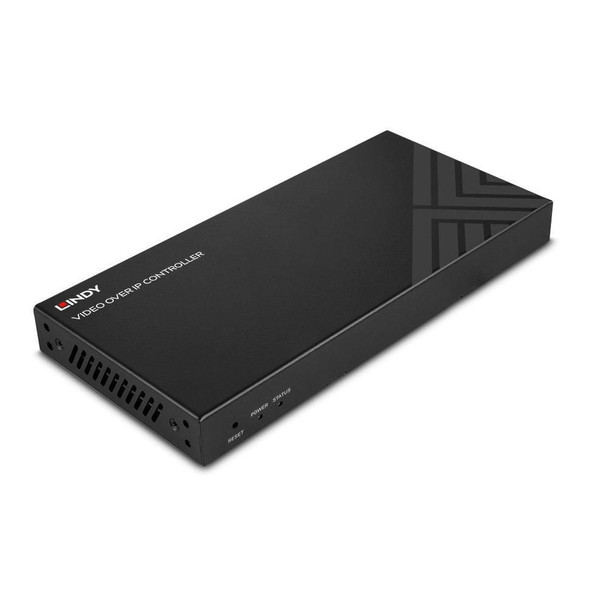

Lindy 38395 "4K30 HDMI & USB over IP 38395

The Lindy 4K30 HDMI & USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).

Please note: all modules are sold separately so you can build and scale according to your requirements.

One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.

Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.

As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.

This Controller unit features dual network ports, one for network control and one for multicast video distribution, and provides control via Web GUI, TCP, RS-232, IR & GPIO. The convenient PoE gigabit interface allows users to install the unit without connecting a PSU.

Features



Cable types supported



Cat6


Infrared (IR) frequency range



20 - 60 kHz


Maximum refresh rate



30 Hz


Maximum resolution



3840 x 2160 Pixels


Maximum transfer distance



100 m


Product colour



Black


Supported network protocols



IP


Type



AV repeater


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



20 - 90 %


Storage temperature (T-T)



-20 - 60 °C


Package dimensions



Depth (package,cm)



15.7 cm


Gross Weight (Package, kg)



0.95 kg


Height (package,cm)



7.7 cm


Width (package,cm)



25.5 cm


Packaging content



AC adapter included



Yes


Cables included



IR


Included power plug types



AU, EU, UK, US


Manual



Yes


Mounting kit



Yes


Packaging data



Quantity per pack



1 pc(s)


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN



Yes


RJ-45 input ports



1


RJ-45 output ports



1


Serial interface type



RS-232


Serial ports quantity



1


Power



Operating voltage



12 V


Output current



1 A


Power over Ethernet (PoE)



Yes


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.74 kg


Product Depth



9.85 cm


Product Height



2.15 cm


Product Width



20.4 cm


Technical details



Sustainability certificates



CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA


Sustainability compliance



Yes


Vendor information



Brand Name


Lindy
