Lindy 38398 HDMI & IR over IP Extender 38398

IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.

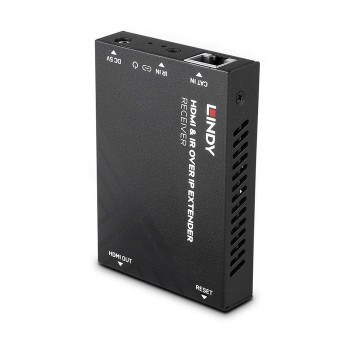

The Lindy HDMI & IR over IP extender is a complete, low cost solution for extending HDMI signals across long distances via a local network setup. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding additional receivers (38399) provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.

Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. HDMI loop out port on the transmitter allows the user to connect a local display while IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.

Please Note: Use a dedicated network specially for larger installations. The HDMI over IP Extender distributes in full 1080p resolution using H.265 video compression.

Features



Bandwidth



6.75 Gbit/s


Cable types supported



Cat5e, Cat6


Chipset



SSC337DE - SSD203D


HDCP



Yes


HDCP version



1.4


Infrared (IR) frequency range



20 - 60 kHz


Material



Metal


Maximum refresh rate



60 Hz


Maximum resolution



1920 x 1080 Pixels


Maximum transfer distance



150 m


Product colour



Black


Supported video modes



1080p


Type



AV transmitter & receiver


Video compression formats



H.265


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



-10 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



22.5 cm


Gross Weight (Package, kg)



0.73 kg


Height (package,cm)



7.5 cm


Width (package,cm)



13.5 cm


Packaging content



Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


HDMI in



1


Number of HDMI outputs



2


Remote (IR) input



1


Remote (IR) output



1


RJ-45 input ports



1


RJ-45 output ports



1


Video in



1


Video out



2


Power



Operating voltage (receiver)



5 V


Operating voltage (transmitter)



5 V


Output current



1 A


Product dimensions



Net Weight (Product, kg)



0.73 kg


Technical details



Sustainability certificates



CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA


Sustainability compliance



Yes


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)


Weight & dimensions



Receiver dimensions (WxDxH)



88 x 61.2 x 16.5 mm


Receiver weight



530 g


Transmitter dimensions (WxDxH)



88 x 61.2 x 16.5 mm


Transmitter weight



530 g
