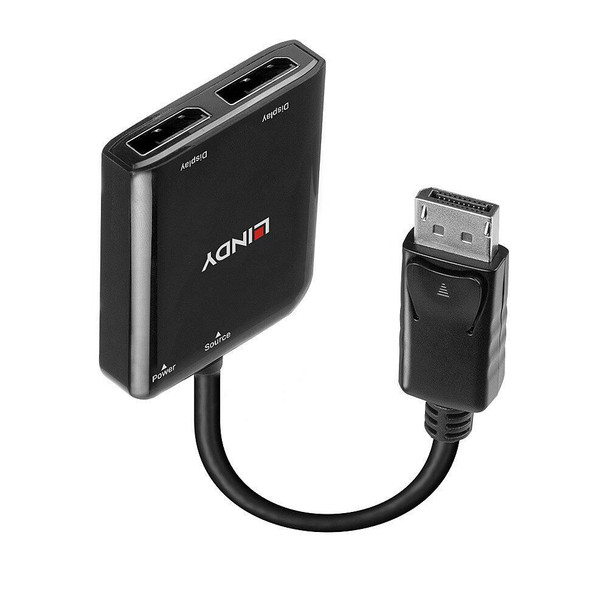

Lindy 38430 2 Port DisplayPort 1.2 MST Hub 38430

The Lindy 2 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 DisplayPort monitors. MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 2 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.

With support up to 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

Features



Data transfer rate



21600 Mbit/s


HDCP



Yes


HDCP version



1.4


Housing material



Acrylonitrile butadiene styrene (ABS)


Maximum resolution (HDMI)



3840 x 2160 Pixels


Product colour



Black


Operational conditions



Maximum operating temperature



40 �C


Minimum operating temperature



-20 �C


Operating relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 80 �C


Package dimensions



Depth (package,cm)



17.4 cm


Gross Weight (Package, kg)



0.06 kg


Height (package,cm)



19.4 cm


Width (package,cm)



1.5 cm


Packaging data



Quantity per pack



1 pc(s)


Ports & interfaces



DisplayPort version



1.2


DisplayPorts quantity



2


Host interface



DisplayPort


Hub interfaces



DisplayPort


Ports quantity



2


Power



Output current



0.5 A


Output voltage



5 V


Power supply type



USB


Product dimensions



Net Weight (Product, kg)



0.06 kg


Product Depth



1 cm


Product Height



4.9 cm


Product Width



25.4 cm


Sustainability



Sustainability certificates



CE


Sustainability compliance



Yes


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)
