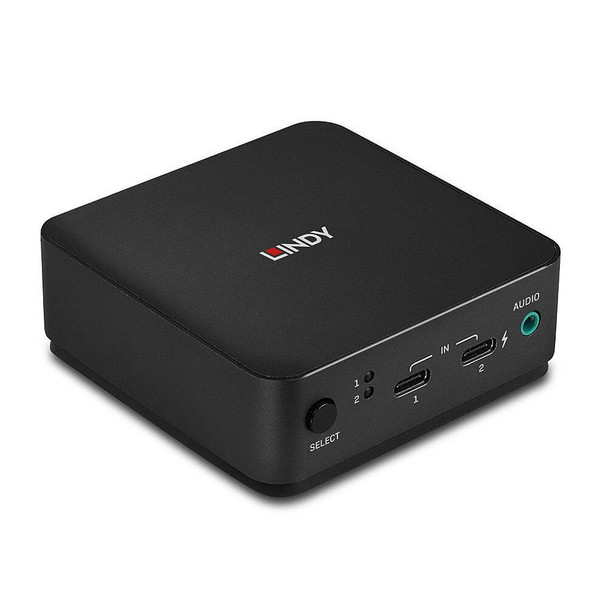

Lindy 42320 2 Port Type C. Dual HDMI 4K60 42320

The Lindy 2 Port Type C, DisplayPort 1.2 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a single keyboard, mouse, and display. It�s an Ideal solution for flexible, plug and play workstations, allowing users to control multiple Laptops, or a single Laptop and another Type C device such as a mobile phone or tablets using Type C with DisplayPort Alt Mode.

Support for resolutions up to 4K Ultra HD 60Hz ensures optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. A combined 3.5mm audio port allows users to connect a headset, microphone or speakers to add immersive 2-channel audio, while additional USB peripherals can be connected via the 2 ports USB 2.0.

Connecting an additional Type C power supply (optional, not included) ensures host devices can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.

This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.

Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.

Design



Cascadable



No


Housing material



Metal


LED indicators



Y, Yes


Product colour



Grey


Push button



Yes


Rack mounting



No


Display



Built-in display



No


Network



Ethernet LAN



No


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



5 - 45 �C


Storage temperature (T-T)



-15 - 60 �C


Package dimensions



Depth (package,cm)



13.8 cm


Gross Weight (Package, kg)



0.31 kg


Height (package,cm)



5.3 cm


Width (package,cm)



18.3 cm


Packaging content



Cables included



USB Type-C


Manual



Yes


Performance



Automatic switching



Yes


HD type



4K Ultra HD


HDCP



Yes


HDCP version



1.3


Maximum resolution



3840 x 2160 Pixels


Ports & interfaces



Audio connections



Yes


Console DisplayPorts ports quantity



1


Console ports



3.5mm headphone, DisplayPort, USB A


Console USB ports quantity



2


DisplayPort version



1.2


DisplayPorts quantity



1


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



2


Video port type



DisplayPort


Power



USB Power Delivery



Yes


USB Power Delivery revision



3.0


USB Power Delivery up to



100 Watt


Product dimensions



Net Weight (Product, kg)



0.31 kg


Product Depth



7.8 cm


Product Height



2.68 cm


Product Width



7.8 cm


Sustainability



Sustainability certificates



CE, Federal Communications Commission (FCC), RoHS, UKCA


Sustainability compliance



Yes


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)
