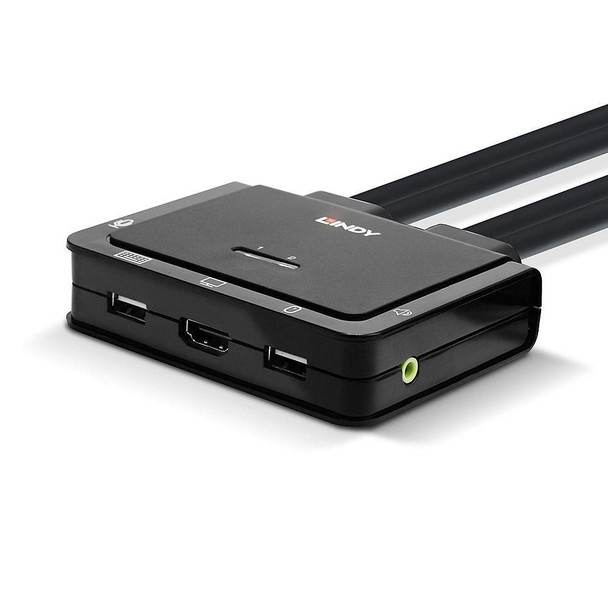

Lindy 42345 2 Port HDMI 4K60. USB 2.0 & 42345

Controls two HDMI equipped PCs from a single keyboard, mouse and monitor
Switch via the unit’s push buttons, software or keyboard hot keys
Supports HDMI 18G signals, up to 4K 60Hz with 4:4:4 8bit
Integrated cables for quick, hassle-free installation
2 year warranty

A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

The Lindy 2 Port HDMI 18G, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two HDMI equipped PCs from a single keyboard, mouse and monitor set. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables, saving time and money on installation.

Support for resolutions up to 4096x2160@60Hz 4:4:4 8bit ensures the optimum image quality, perfect for high graphical content in gaming setups, video editing or dual system control workstations. The audio output port also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

The KVM switch features multiple switching options including push buttons on the unit alongside hotkey and software switching to provide simple, reliable control for the user, great for both professional and first time users.

Design



Cable length



1.2 m


Certification



CE, FCC, REACH


Housing material



Plastic


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Display



Built-in display



No


Logistics data



Harmonized System (HS) code



85176200


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 °C


Storage temperature (T-T)



-20 - 60 °C


Package dimensions



Depth (package,cm)



6 cm


Gross Weight (Package, kg)



0.51 kg


Height (package,cm)



25 cm


Width (package,cm)



16 cm


Packaging content



Manual



Yes


Performance



HD type



4K Ultra HD


HDCP



Yes


Maximum resolution



4096 x 2160 Pixels


Video bandwidth



60 Hz


Ports & interfaces



Console ports



3.5mm headphone, 3.5mm mic, HDMI, USB A


Console USB ports quantity



2


HDMI ports quantity



1


HDMI version



2.0


Headphone outputs



1


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



2


Number of microphone inputs



1


Video port type



HDMI


Power



DC input voltage



5 V


Power source



DC


Product dimensions



Net Weight (Product, kg)



0.51 kg


Product Depth



8.22 cm


Product Height



2.5 cm


Product Width



9.7 cm


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)
