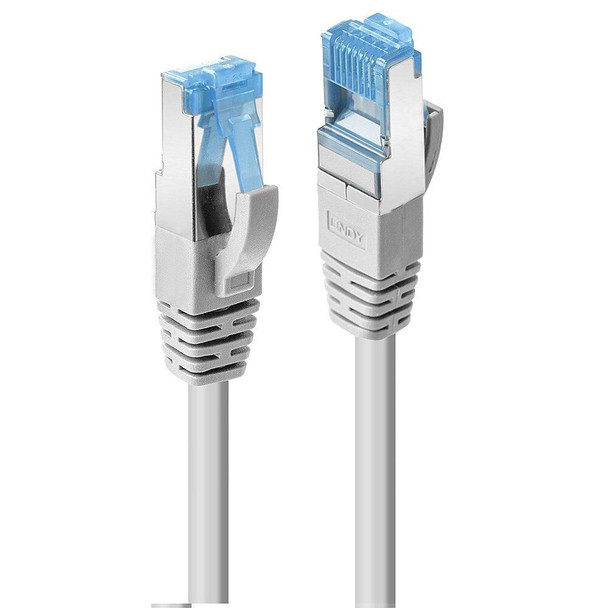

Lindy 47138 10m Cat.6A S/FTP LSZH Network 47138

Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.

Available colours: Black, Blue, Grey, Red, White

Features



AWG wire size



27


Cable class



Ea


Cable length



10 m


Cable shielding



S/FTP (S-STP)


Cable standard



Cat6a


Cabling technology



10/100/1000Base-T(X)


Connector 1



RJ-45


Connector 1 gender



Male


Connector 2



RJ-45


Connector 2 gender



Male


Connector contacts plating



Gold


Data transfer rate



1000 Mbit/s


Plug and Play



Yes


Product colour



Grey


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



32.4 cm


Gross Weight (Package, kg)



0.35 kg


Height (package,cm)



33.5 cm


Width (package,cm)



2.5 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



0.35 kg


Vendor information



Brand Name


Lindy


Warranty



10 Year(s)
