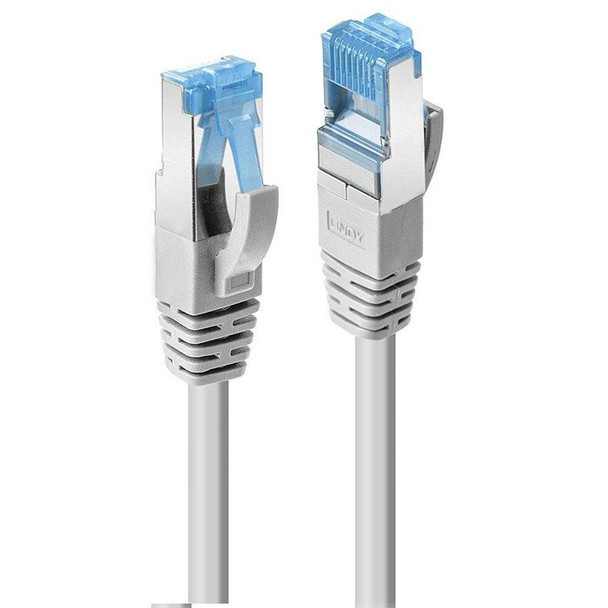

Lindy 47637 10m Cat.6A S/FTP TPE Network 47637

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.

The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.

Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The TPE used as a sheath material provides increased flexibility and easy handling of cables.

Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.

Features



AWG wire size



28


Bend radius (min)



7.4 cm


Cable length



10 m


Cable shape



Round


Cable shielding



S/FTP (S-STP)


Cable standard



Cat6a


Cabling technology



10GBase-T


Certification



RoHS, REACH, UL, California Proposition 65


Conductor material



Copper


Connector 1



RJ-45


Connector 1 form factor



Straight


Connector 1 gender



Male


Connector 2



RJ-45


Connector 2 form factor



Straight


Connector 2 gender



Male


Connector contacts plating



Nickel/Gold


Connector housing material



Polycarbonate (PC)


Connector shield material



Copper alloy


Frequency



500 MHz


Jacket material



Thermoplastic elastomer (TPE)


Plug and Play



Yes


Product colour



Grey


Snagless cable boot



Yes


Operational conditions



Operating temperature (T-T)



-10 - 60 °C


Storage temperature (T-T)



-20 - 75 °C


Other features



Quantity per box



1 pc(s)


Package dimensions



Depth (package,cm)



23.6 cm


Gross Weight (Package, kg)



0.37 kg


Height (package,cm)



25.9 cm


Width (package,cm)



2.5 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



0.37 kg


Product Depth



2.28 cm


Product Height



0.83 cm


Product Width



1.16 cm


Technical details



Sustainability certificates



REACH, RoHS


Sustainability compliance



Yes


Warranty period



10 year(s)


Vendor information



Brand Name


Lindy


Warranty



10 Year(s)


Weight & dimensions



Outer diameter



6.2 mm
