Lindy

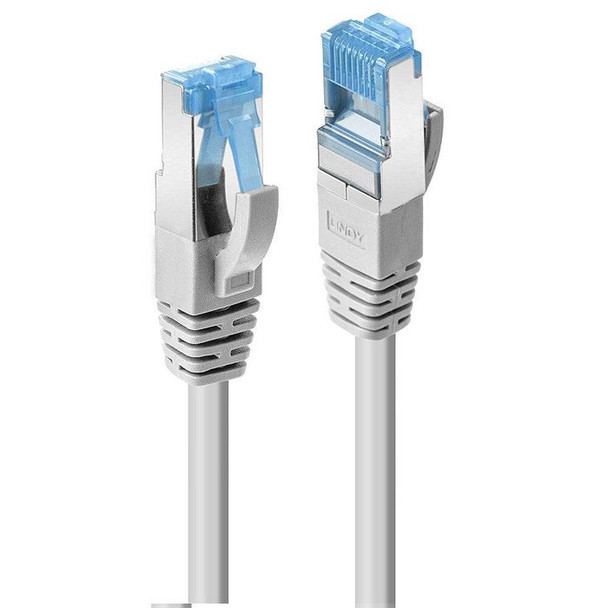

Lindy 47639 20m Cat.6A S/FTP TPE Network 47639
- UPC:
- 4002888476393
- MPN:
- 47639
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Features
AWG wire size
28
Bend radius (min)
7.4 cm
Cable length
20 m
Cable shape
Round
Cable shielding
S/FTP (S-STP)
Cable standard
Cat6a
Certification
UL, California Proposition 65
Conductor material
Copper
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Nickel/Gold
Connector housing material
Polycarbonate (PC)
Connector shield material
Aluminium
Connector shielding
Yes
Frequency
500 MHz
Jacket material
Thermoplastic elastomer (TPE)
Product colour
Grey
Snagless cable boot
Yes
Operational conditions
Operating temperature (T-T)
-10 - 60 �C
Storage temperature (T-T)
-20 - 75 �C
Package dimensions
Depth (package,cm)
30 cm
Gross Weight (Package, kg)
0.7 kg
Width (package,cm)
30 cm
Packaging data
Quantity per pack
1 pc(s)
Product dimensions
Net Weight (Product, kg)
0.7 kg
Product Depth
2.28 cm
Product Height
0.83 cm
Product Width
1.16 cm
Technical details
Sustainability certificates
CE, REACH, RoHS
Sustainability compliance
Yes
Warranty period
10 year(s)
Vendor information
Brand Name
Lindy
Warranty
10 Year(s)
Weight & dimensions
Outer diameter
6.2 mm
View AllClose
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Features
AWG wire size
28
Bend radius (min)
7.4 cm
Cable length
20 m
Cable shape
Round
Cable shielding
S/FTP (S-STP)
Cable standard
Cat6a
Certification
UL, California Proposition 65
Conductor material
Copper
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Nickel/Gold
Connector housing material
Polycarbonate (PC)
Connector shield material
Aluminium
Connector shielding
Yes
Frequency
500 MHz
Jacket material
Thermoplastic elastomer (TPE)
Product colour
Grey
Snagless cable boot
Yes
Operational conditions
Operating temperature (T-T)
-10 - 60 �C
Storage temperature (T-T)
-20 - 75 �C
Package dimensions
Depth (package,cm)
30 cm
Gross Weight (Package, kg)
0.7 kg
Width (package,cm)
30 cm
Packaging data
Quantity per pack
1 pc(s)
Product dimensions
Net Weight (Product, kg)
0.7 kg
Product Depth
2.28 cm
Product Height
0.83 cm
Product Width
1.16 cm
Technical details
Sustainability certificates
CE, REACH, RoHS
Sustainability compliance
Yes
Warranty period
10 year(s)
Vendor information
Brand Name
Lindy
Warranty
10 Year(s)
Weight & dimensions
Outer diameter
6.2 mm
