Lindy

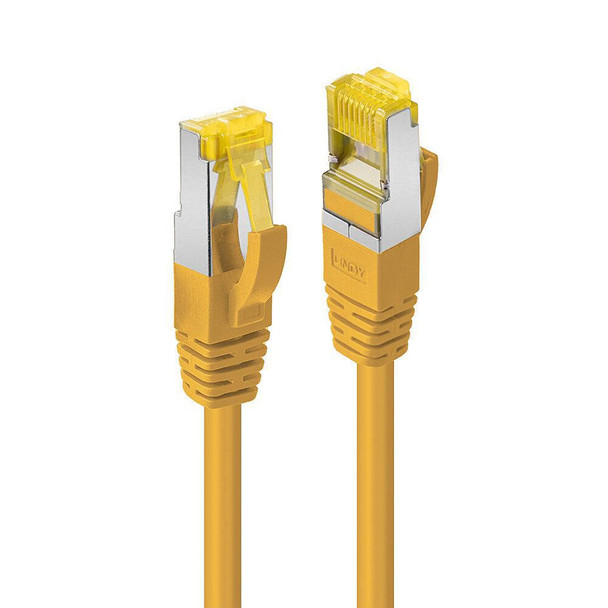

Lindy 47661 0.5m RJ45 S/FTP LSZH Network 47661
- UPC:
- 4002888476614
- MPN:
- 47661
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Cat.7 S/FTP LSZH network cable with Cat.6A connectors supports bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
The Cat.7 cable material for operating frequencies up to 600MHz with taotal braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".
Features
AWG wire size
26
Bend radius (min)
7.8 cm
Cable length
0.5 m
Cable shape
Round
Cable shielding
S/FTP (S-STP)
Cable standard
Cat7
Cabling technology
10GBase-T
Certification
ISO/IEC 11801
Conductor material
Copper
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Data transfer rate
10000 Mbit/s
Ethernet interface type
10 Gigabit Ethernet
Frequency
600 MHz
Jacket material
Low smoke zero halogen (LSZH)
Nominal attenuation
51.4dB/100m @600MHz
Product colour
Orange
Operational conditions
Operating temperature (T-T)
-10 - 60 �C
Storage temperature (T-T)
-20 - 75 �C
Package dimensions
Depth (package,cm)
17.4 cm
Gross Weight (Package, kg)
0.03 kg
Height (package,cm)
19.4 cm
Width (package,cm)
1 cm
Packaging data
Quantity per pack
1 pc(s)
Product dimensions
Net Weight (Product, kg)
0.03 kg
Product Depth
22.8 cm
Product Height
8.3 cm
Product Width
11.6 cm
Technical details
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
Vendor information
Brand Name
Lindy
Warranty
10 Year(s)
Weight & dimensions
Outer diameter
6.5 mm
View AllClose
The Cat.7 cable material for operating frequencies up to 600MHz with taotal braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".
Features
AWG wire size
26
Bend radius (min)
7.8 cm
Cable length
0.5 m
Cable shape
Round
Cable shielding
S/FTP (S-STP)
Cable standard
Cat7
Cabling technology
10GBase-T
Certification
ISO/IEC 11801
Conductor material
Copper
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Data transfer rate
10000 Mbit/s
Ethernet interface type
10 Gigabit Ethernet
Frequency
600 MHz
Jacket material
Low smoke zero halogen (LSZH)
Nominal attenuation
51.4dB/100m @600MHz
Product colour
Orange
Operational conditions
Operating temperature (T-T)
-10 - 60 �C
Storage temperature (T-T)
-20 - 75 �C
Package dimensions
Depth (package,cm)
17.4 cm
Gross Weight (Package, kg)
0.03 kg
Height (package,cm)
19.4 cm
Width (package,cm)
1 cm
Packaging data
Quantity per pack
1 pc(s)
Product dimensions
Net Weight (Product, kg)
0.03 kg
Product Depth
22.8 cm
Product Height
8.3 cm
Product Width
11.6 cm
Technical details
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
Vendor information
Brand Name
Lindy
Warranty
10 Year(s)
Weight & dimensions
Outer diameter
6.5 mm
