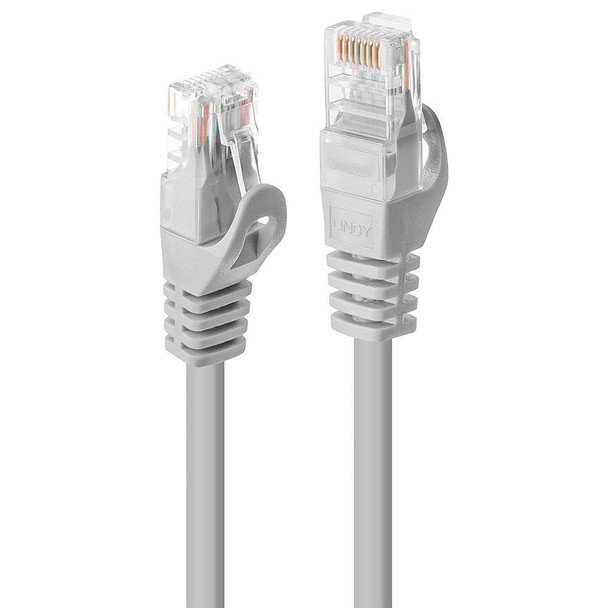

Lindy 48364 3m Cat.5e U/UTP Network 48364

Twisted Pair Patch Cable with RJ45 connectors
Cat.5e U/UTP, PVC
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m.

Features



Cable length



3 m


Cable shielding



U/UTP (UTP)


Cable standard



Cat5e


Cable type



Straight-through cable


Cabling technology



10/100/1000Base-T(X)


Certification



ISO/IEC 11801, EIA/TIA 568B.2, UL


Connector 1



RJ-45


Connector 1 gender



Male


Connector 2



RJ-45


Connector 2 gender



Male


Data transfer rate



1000 Mbit/s


Frequency



100 MHz


Jacket material



Low smoke zero halogen (LSZH)


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



23.6 cm


Gross Weight (Package, kg)



0.09 kg


Height (package,cm)



25.5 cm


Width (package,cm)



2.1 cm


Product dimensions



Net Weight (Product, kg)



0.09 kg


Technical details



Doesn't contain



Halogen


Vendor information



Brand Name


Lindy


Warranty



10 Year(s)
