Lmp

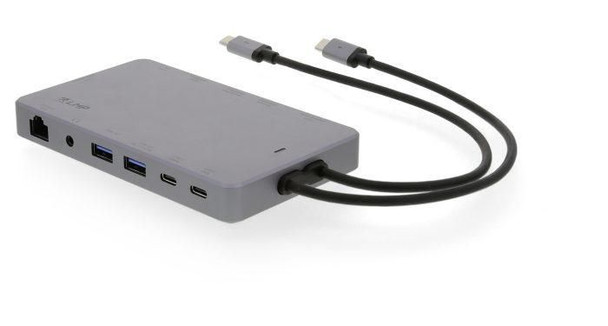

LMP 20416 USB-C Display Dock 2 4K 12 20416
- UPC:
- 5704174812593
- MPN:
- 20416
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
LMP USB-C DISPLAY DOCK 2
The LMP Display Dock 2 has all standard video ports and supports up to two monitors at 4K@60 Hz. This makes it the most comprehensive USB-C video dock on the market: 2x HDMI (4K@60 Hz), Mini DisplayPort (4K@60 Hz), DisplayPort (4K@60 Hz), DVI (1080p@60 Hz) and VGA (1080p@60 Hz). Thanks to the dual USB-C connection to the host (Mac), the Display Dock 2 lets you expand your video content to two external displays (dual 4K monitor support/Extended Mode), each with maximum resolution and refresh rate. This allows you to run up to three different images simultaneously and independently. It�s ideal for the professional user, the passionate cineaste or the avid gamer � take advantage of 4K video with a high-frequency refresh rate of 60 Hz. In addition to the 6 video ports, the LMP USB-C Display Dock 2 connects to the outside world via Gigabit Ethernet and has two USB 3.0 ports for data transfer � one of which is optimised for charging a smartphone or tablet thanks to the implemented BC 1.2 standard. The two USB-C ports perform different tasks � one as the host charging port (Power Delivery 3.0/100W) and one for data transfer at up to 5 Gbps. The audio output (3.5 mm jack) allows the connection of a loudspeaker or headphones. For full functionality, the two USB-C connection cables must be connected to the host. Note: For dual 4K monitor support, you may choose HDMI 1 + HDMI 2 or DisplayPort or Mini-DisplayPort or VGA or DVI. A combination without HDMI 1 (e.g. DisplayPort + Mini-DisplayPort) does not work as Extended Mode. 4K@60 Hz can be displayed if the host�s graphics card is capable of DisplayPort 1.4/HBR 3 (all Mac from 2018 onwards). For older Mac, 4K@30 Hz can be displayed.
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10, 100, 1000
Package dimensions
Gross Weight (Package, kg)
0.3 kg
Performance
Brand compatibility
Apple
Compatibility
16" MacBook Pro (2019), 15" MacBook Pro (2016 - 2020), 13" MacBook Pro (2016 - 2020), 13" MacBook Air (2018 - 2020), 27" iMac (2017 - 2020), 21.5" iMac (2017 - 2019), iMac Pro (2017), Mac mini (2018 - 2020), Mac Pro (2019)
Data transfer rate
5 Gbit/s
HD type
4K Ultra HD
Housing material
Aluminium
Maximum digital resolution
3840 x 2160 Pixels
Maximum refresh rate
60 Hz
Product colour
Grey
Ports & interfaces
Connectivity technology
Wired
DisplayPorts quantity
1
DVI-I ports quantity
1
HDMI ports quantity
2
Headphone connectivity
3.5 mm
Headphone outputs
1
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Mini DisplayPorts quantity
1
Thunderbolt 3 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB Power Delivery
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 Watt
VGA (D-Sub) ports quantity
1
Power
Power cable length
0.29 m
Product dimensions
Net Weight (Product, kg)
0.24 kg
Product Depth
13.5 cm
Product Height
1.5 cm
Product Width
7.8 cm
Vendor information
Brand Name
LMP
Warranty
1 Year(s)
View AllClose
The LMP Display Dock 2 has all standard video ports and supports up to two monitors at 4K@60 Hz. This makes it the most comprehensive USB-C video dock on the market: 2x HDMI (4K@60 Hz), Mini DisplayPort (4K@60 Hz), DisplayPort (4K@60 Hz), DVI (1080p@60 Hz) and VGA (1080p@60 Hz). Thanks to the dual USB-C connection to the host (Mac), the Display Dock 2 lets you expand your video content to two external displays (dual 4K monitor support/Extended Mode), each with maximum resolution and refresh rate. This allows you to run up to three different images simultaneously and independently. It�s ideal for the professional user, the passionate cineaste or the avid gamer � take advantage of 4K video with a high-frequency refresh rate of 60 Hz. In addition to the 6 video ports, the LMP USB-C Display Dock 2 connects to the outside world via Gigabit Ethernet and has two USB 3.0 ports for data transfer � one of which is optimised for charging a smartphone or tablet thanks to the implemented BC 1.2 standard. The two USB-C ports perform different tasks � one as the host charging port (Power Delivery 3.0/100W) and one for data transfer at up to 5 Gbps. The audio output (3.5 mm jack) allows the connection of a loudspeaker or headphones. For full functionality, the two USB-C connection cables must be connected to the host. Note: For dual 4K monitor support, you may choose HDMI 1 + HDMI 2 or DisplayPort or Mini-DisplayPort or VGA or DVI. A combination without HDMI 1 (e.g. DisplayPort + Mini-DisplayPort) does not work as Extended Mode. 4K@60 Hz can be displayed if the host�s graphics card is capable of DisplayPort 1.4/HBR 3 (all Mac from 2018 onwards). For older Mac, 4K@30 Hz can be displayed.
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10, 100, 1000
Package dimensions
Gross Weight (Package, kg)
0.3 kg
Performance
Brand compatibility
Apple
Compatibility
16" MacBook Pro (2019), 15" MacBook Pro (2016 - 2020), 13" MacBook Pro (2016 - 2020), 13" MacBook Air (2018 - 2020), 27" iMac (2017 - 2020), 21.5" iMac (2017 - 2019), iMac Pro (2017), Mac mini (2018 - 2020), Mac Pro (2019)
Data transfer rate
5 Gbit/s
HD type
4K Ultra HD
Housing material
Aluminium
Maximum digital resolution
3840 x 2160 Pixels
Maximum refresh rate
60 Hz
Product colour
Grey
Ports & interfaces
Connectivity technology
Wired
DisplayPorts quantity
1
DVI-I ports quantity
1
HDMI ports quantity
2
Headphone connectivity
3.5 mm
Headphone outputs
1
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Mini DisplayPorts quantity
1
Thunderbolt 3 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB Power Delivery
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 Watt
VGA (D-Sub) ports quantity
1
Power
Power cable length
0.29 m
Product dimensions
Net Weight (Product, kg)
0.24 kg
Product Depth
13.5 cm
Product Height
1.5 cm
Product Width
7.8 cm
Vendor information
Brand Name
LMP
Warranty
1 Year(s)
