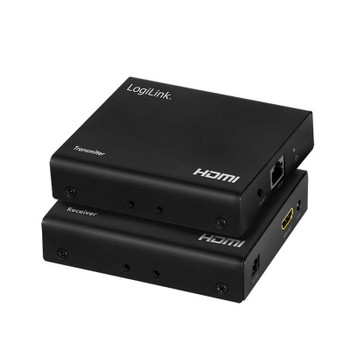

LogiLink HD0029 Kvm Extender Transmitter & HD0029

The HDBaseT 4K HDMI KVM extender set from LogiLink consists of a transmitter unit (local site) and a receiver unit (remote site). The 4K HDMI signal can be extended over a network cable (Cat.5e/6/6a/7) to a maximum distance of 100 m (full HD video content). The highest supported video resolution is 4K/60 Hz. Likewise, it allows convenient access to a computer (mouse & keyboard) via the USB ports on the receiver unit (KVM function). With support for HDCP 2.2, HDR, CEC, 3D, as well as audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD experience ultra-sharp image quality. Perfect for industrial, commercial and public applications.

Features



Bandwidth



340 MHz


Cable types supported



Cat5e, Cat6, Cat7, Cat8.1


Connectivity technology



Wired


LED indicators



Yes


Material



Metal


Maximum transfer distance



100 m


Product colour



Black


Type



Transmitter & receiver


Logistics data



Harmonized System (HS) code



84733080


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 70 °C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 80 °C


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Packaging content



AC adapter included



Yes


Manual



Yes


Ports & interfaces



HDMI version



2.0


Power



AC adapter output current



2 A


AC adapter output voltage



12 V


AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



0.65 A


Power consumption (receiver) (max)



7 Watt


Power consumption (transmitter) (max)



3 Watt


Product dimensions



Net Weight (Product, kg)



0.1 kg


Receiver



Receiver local keyboard/mouse port type



USB


Receiver local video port type



HDMI


RJ-45 ports quantity (receiver)



1


Transmitter



RJ-45 ports quantity (transmitter)



1


Transmitter local keyboard/mouse port type



USB


Transmitter video port type



HDMI


Vendor information



Brand Name


LogiLink


Warranty



4 Year(s)


Weight & dimensions



Receiver depth



8.2 cm


Receiver height



2.8 cm


Receiver weight



260 g


Receiver width



10.8 cm


Transmitter depth



8.9 cm


Transmitter height



2.6 cm


Transmitter weight



235 g


Transmitter width



10.4 cm
