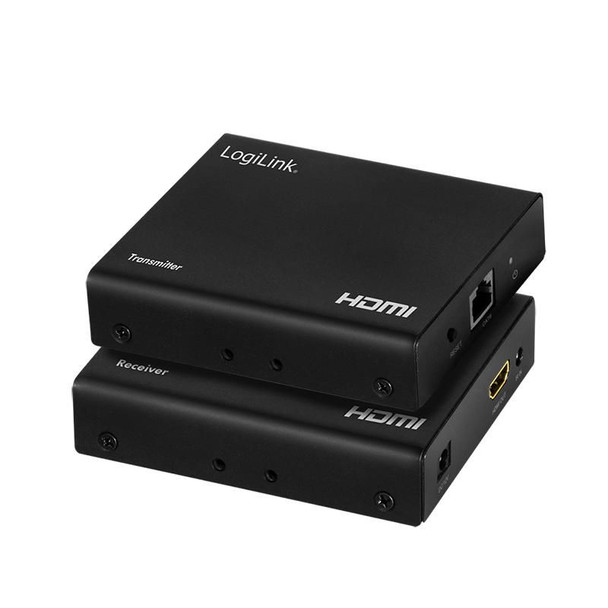

LogiLink HD0030 Av Extender Av Transmitter & HD0030

The LogiLink Ultra HD HDMI extender/splitter set (transmitter & receiver unit) offers an extender solution via TCP/IP for the highest demands and distributes audio and video signals of your HDMI device to up to two monitors, TVs or projectors. It transmits digital video and audio signals to a maximum length of up to 70 m over a single Cat.5e/6/7/8 network cable. The highest supported video resolution is 4K/60 Hz. With support for HDCP 1.4/2.2 (bypass function), HDR10, 3D, as well as audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD, experience ultra-sharp image quality. The bidirectional infrared interface (transmitter, receiver) allows you to use the remote control of the connected input source. The additional PoC (Power over Cable) functionality allows you to power remote devices even if no external power source is available there.

Features



3D



Yes


Audio formats supported



DTS, LPCM


Bandwidth



6 Gbit/s


Bandwidth



600 MHz


Cable types supported



Cat5e, Cat6, Cat7, Cat8.1


LED indicators



Yes


Material



Metal


Maximum transfer distance



70 m


Product colour



Black


Type



AV transmitter & receiver


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 70 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 80 �C


Package dimensions



Gross Weight (Package, kg)



0.95 kg


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN



Yes


HDMI in



1


HDMI version



2.0


Number of HDMI outputs



2


Remote (IR) input



1


Remote (IR) output



1


RJ-45 input ports



1


RJ-45 output ports



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



0.4 A


Operating voltage



12 V


Output current



1 A


Power consumption (receiver) (max)



1.6 Watt


Power consumption (transmitter) (max)



1.3 Watt


Product dimensions



Net Weight (Product, kg)



0.73 kg


Vendor information



Brand Name


LogiLink


Warranty



4 Year(s)


Weight & dimensions



Receiver dimensions (WxDxH)



100 x 88 x 23 mm


Receiver weight



200 g


Transmitter dimensions (WxDxH)



100 x 88 x 23 mm


Transmitter weight



200 g
