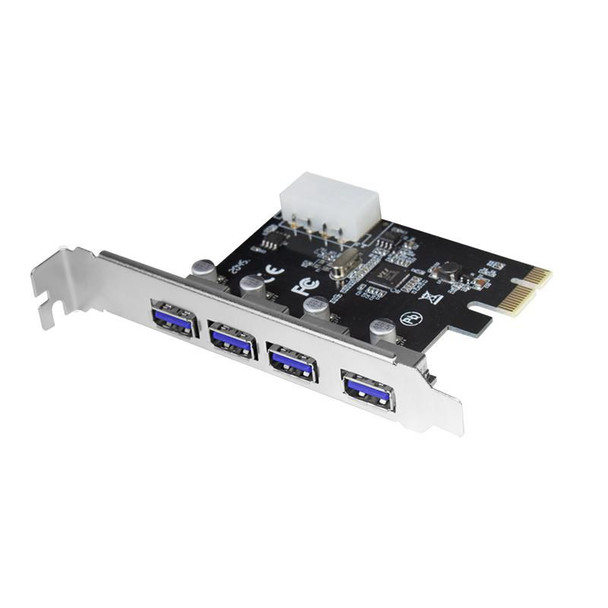

LogiLink PC0057A PCIe 4x USB 3.0 PC0057A

Expansion card LogiLink for 4 additional USB 3.0 ports. The interface is installed in the PCI Express port of your computer with Plug and Play support. It supports USB 3.0 transfer rates of up to 5 Gbps and an electricity supply of up to 900 mA per port. Backwards-compatible USB 2.0 or USB 1.1 devices are operated.

- PCI Express card, USB 3.0.
- Chipset: VIA VL805.
- 4x USB 3.0 (Type A) female.
- Backward compatible with USB 2.0/1.1.
- Specification according to USB 3.0.
- Max. Transfer rate: 5 GBit/s.
- USB Legacy function.
- Internal power supply via 5.25".
- Maximum of 900 mA per USB 3.0 port.
- Supports Windows XP/Vista/7/8/8.1.

Design



Hot-Plug support



Yes


Internal



Yes


Purpose



PC


RoHS compliance



Yes


Features



Bandwidth



5 Gbit/s


Chipset



VIA VL805


Harmonized System (HS) code



84733020


Plug and Play



Yes


Package dimensions



Depth (package,cm)



16.7 cm


Gross Weight (Package, kg)



0.3 kg


Height (package,cm)



6 cm


Width (package,cm)



17.2 cm


Packaging data



User guide



Yes


Ports & interfaces



Host interface



PCIe


Output interface



USB 3.2 Gen 1 (3.1 Gen 1)


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


Product dimensions



Net Weight (Product, kg)



0.2 kg


System requirements



Windows operating systems supported



Windows 7 Home Basic, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


LogiLink


Warranty



4 Year(s)
