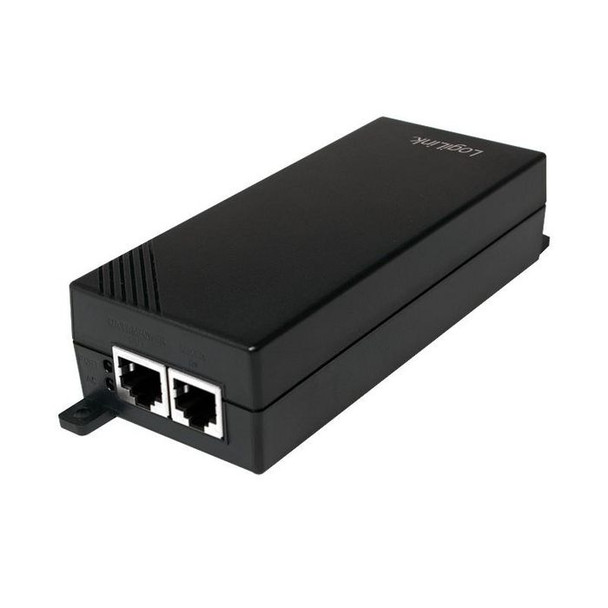

LogiLink POE004 PoE Injector30W POE004

Features:
- Automatically detects PoE terminals and supplies inline power
- Interface: One connector (Data port) for connecting to the passive hub or switch and one connector (Data & power port) for connecting to the PoE PD
- Standard: IEEE802.3 10BASE-T / IEEE802.3u 100BASE-TX / IEEE802.3ab 1000BASE-T / IEEE802.3af
- LED Definition: Power: Green LED (1x), Light off: not connect PD or fail, Light on: connect PD
- AC: Green LED (1x), Light off: power off or fail, Light on: power on

Features



LED indicators



Yes


Power protection features



Overload, Short circuit


Product colour



Black


Rack mounting



No


Logistics data



Harmonized System (HS) code



85044090


Network



Cabling technology



10/100/1000 BASE T(X)


Compliance industry standards



RoHS


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Power over Ethernet (PoE)



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Height (package,cm)



6.5 cm


Width (package,cm)



19.7 cm


Packaging content



Manual



Yes


Number of products included



1 pc(s)


Power cord included



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power



AC adapter frequency



50/60 Hz


AC adapter input voltage



100 - 240 V


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet (PoE) voltage



53 V


Product dimensions



Net Weight (Product, kg)



0.4 kg


Vendor information



Brand Name


LogiLink


Warranty



4 Year(s)


Weight & dimensions



Dimensions (WxDxH)



58 x 155 x 36 mm
