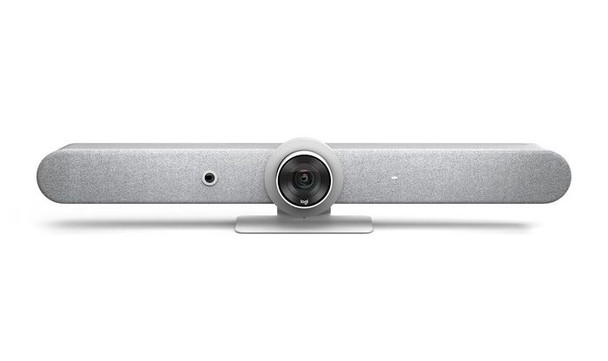

Logitech 960-001326 Rally Bar Video Conferencing 960-001326

Rally Bar is Logitech�s premier, all-in-one video bar for midsize meeting rooms. With cinema-quality video and audio, AI-driven performance, and beautiful design, Rally Bar sets a new standard for video collaboration.

Rally Bar creates a natural, frictionless meeting experience with motorized PTZ and 15x optical + digital HD zoom. AI Viewfinder persistently views the room, ensuring all meeting participants are captured and framed to perfection.

Powerful low-distortion speakers and adaptive beamforming mics, optimized by RightSound�, deliver outstanding conversational accuracy. Out of the box, Rally Bar provides an expansive 15� mic pickup range with the option to extend coverage for larger groups and settings.

Simple, versatile, and meticulously designed for scale, Rally Bar offers clutter-free cable management and multiple mounting options. Plug and play Rally Bar with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.

Audio



Audio beamforming



Yes


Built-in speaker(s)



Yes


Echo cancellation



Yes


Line-out impedance



4 ?


Microphone pick-up range



4.5 m


Noise reduction



Yes


Output level



92/99 dB


Output voltage Total Harmonic Distortion (THD)



2 %


RMS rated power



8 Watt


Sample rates



0 - 48 kHz


Battery



Battery capacity



0.675 Wh


Camera



Diagonal field of view



90 �


Digital zoom



3 x


Horizontal field of view



82.1 �


Optical zoom



5 x


Remote control interface



Bluetooth


Vertical field of view



52.2 �


Zoom capability



Yes


Computer system



Mac operating systems supported



Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey


Windows operating systems supported



Windows 10, Windows 11


Features



Telepresence



No


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



9.889 kg


Master (outer) case height



23.1 cm


Master (outer) case length



100.4 cm


Master (outer) case width



22 cm


Microphone



Microphone direction type



Omnidirectional


Microphone frequency



90 - 16000 Hz


Microphone sensitivity



-36 dB


Number of microphones



6


Sound pressure level (max)



90 dB


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Security algorithms



128-bit AES


Supported network protocols



IPv4, IPv6


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


Operational conditions



Heat dissipation



64 BTU/h


Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



98.9 cm


Gross Weight (Package, kg)



9.2 kg


Height (package,cm)



21.8 cm


Width (package,cm)



20.7 cm


Packaging content



AC adapter included



Yes


Cables included



AC, DC, HDMI, USB Type-A to USB Type-C


HDMI cable length



2 m


Packaging content



Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation


Power cable length



2.5 m


Quick start guide



Yes


Remote control included



Yes


Performance



Pan range



-25 - 25 �


Product colour



White


Product type



Group video conferencing system


PTZ control



Yes


Tilt angle range



-15 - 15 �


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


HDMI input ports quantity



1


HDMI output ports quantity



2


HDMI ports quantity



3


Microphone in



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB connector type



USB Type-A, USB Type-C


Power



AC input voltage



100 - 240 V


Battery capacity



220 mAh


Battery technology



Lithium


Current



4.754 A


DC input voltage



19 V


Number of batteries supported



2


Power plug type



Type J


Power source type



AC


Product dimensions



Net Weight (Product, kg)



7.08 kg


Product Depth



16 cm


Product Height



16.4 cm


Product Width



91 cm


Vendor information



Brand Name


Logitech


Warranty



1 Year(s)


Video



HD type



4K Ultra HD


Maximum frame rate



30 fps


Supported video modes



576p, 720p, 900p, 1440p, 2160p
