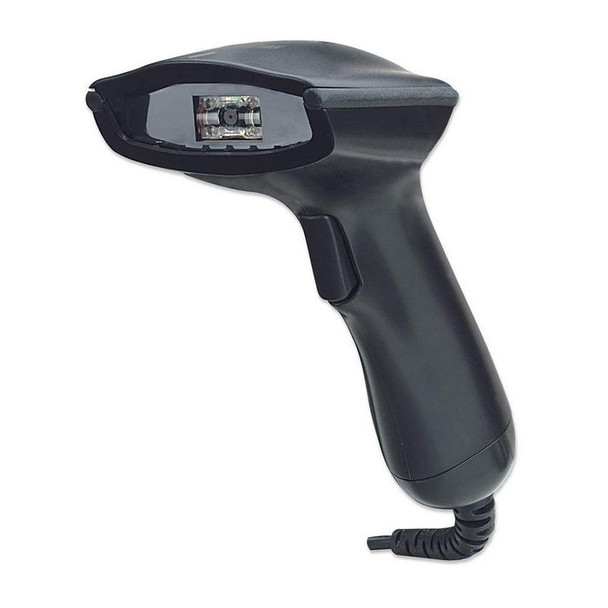

Manhattan 177603 2D Handheld Barcode Scanner. 177603

Improve speed, accuracy and productivity._x000D_
the Manhattan 2D Barcode Scanner delivers high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The 2D scan engine offers speed, accuracy and greater tolerances for reliable service reading popular 1D and 2D barcodes including UPC/EAN, UCC/EAN128, Data Matrix, PDF 417, Maxicode and more. _x000D_
_x000D_
Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its versatile USB interface and bus power integrate with most PCs without the need of an external power supply or complicated installation. With a scan rate of 200 scans per second and an accurate read range of up to 430 mm (17 in.), the Manhattan 2D Barcode Scanner offers a practical daily scanning solution for point-of-sale, postal, hospitality, travel, shipping, warehousing, office and other commercial and industrial applications to minimize manual data entry, speed transactions and reduce errors.

Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



20 - 95 %


Operating temperature (T-T)



0 - 50 °C


Storage temperature (T-T)



-20 - 70 °C


Package dimensions



Gross Weight (Package, kg)



0.18 kg


Performance



Certification



FCC, CE, UL


Housing material



Acrylonitrile butadiene styrene (ABS)


Product colour



Black


Ports & interfaces



Cable length



1.5 m


Connectivity technology



Wired


Standard interfaces



USB


Power



Input voltage



5 V


Power consumption



435 mA


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.14 kg


Product Depth



19.3 cm


Product Height



7.2 cm


Product Width



9 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code


Light levels (direct sunlight)



0 - 100000 lx


Linear (1D) barcodes supported



Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, Telepen


Maximum scan width



43 cm


Optical sensor resolution (W x H)



752 x 480 Pixels


Read rate (max)



200 reads/s


Scanner type



2D


Sensor type



Laser


Type



Handheld bar code reader


Wavelength



650 nm


Vendor information



Brand Name


Manhattan


Warranty



1 Year(s)
