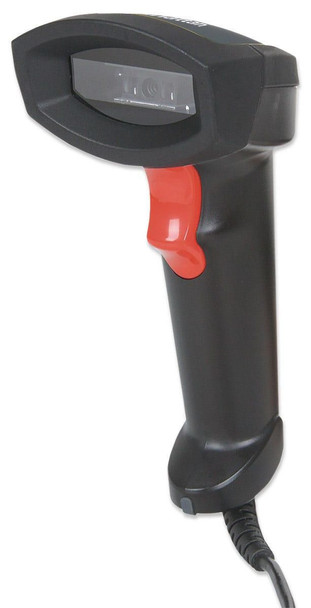

Manhattan 178433 Linear Ccd Handheld Barcode 178433

Improve speed, accuracy and productivity._x000D_
_x000D_
_x000D_
Manhattan Linear CCD Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts, and has a rugged impact-resistant housing for years of reliable service of reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. With a scan rate of 500 scans per second and an accurate read range of up to 500 mm (20 in.), this model offers a high-performance, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.

Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



20 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



0.38 kg


Performance



Certification



FCC, CE, RoHS


Housing material



Acrylonitrile butadiene styrene (ABS), Rubber


International Protection (IP) code



IP54


LED indicators



Y, Yes


Product colour



Black


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



Keyboard wedge, RS-232, USB


Power



Input voltage



5 V


Power consumption



70 mA


Product dimensions



Net Weight (Product, kg)



0.29 kg


Product Depth



18 cm


Product Height



7 cm


Product Width



7 cm


Scanning



2D (matrix & stacked) barcodes supported



Not supported


Light levels (direct sunlight)



0 - 10000 lx


Linear (1D) barcodes supported



Code 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN


Maximum scan width



50 cm


Read rate (max)



500 reads/s


Scanner type



1D


Sensor type



CCD


Type



Handheld bar code reader


Wavelength



632 nm


Working distance



50 cm


Vendor information



Brand Name


Manhattan


Warranty



1 Year(s)
