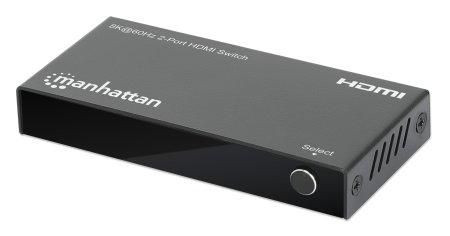

Manhattan 207942 Hdmi Switch 2-Port. 8K@60Hz. 207942

High-end HDMI 2.1 Switch with future-proof 8K at 60Hz or 4K at 120Hz to easily connect multiple sources to a single display
The compact Manhattan 8K@60Hz 2-Port HDMI Switch lets you share an HDMI 2.1 TV or projector with two HDMI 2.1 sources without distorting or degrading your video. It features two independent video inputs that can each support 8K resolution at 60 Hz, making it the perfect solution for connecting and watching either video source on a display that has only one available HDMI 2.1 port.

Brilliant colors and contrast with Dynamic HDR and Dolby Vision�
This switch delivers images in incredible 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 120 Hz with Dynamic HDR and Dolby Vision� for perfect contrast and colors. With full 4:4:4 chroma subsampling, it does not compress the signal to work at inferior bitrates. It can transmit bandwidths up to 48 Gbps for high-resolution computer tasks.

Easy installation and wide compatibility
Full compliance with HDMI 2.1 and HDCP 2.3 ensures that this 2-way Switch can provide reliable performance. Quickly connect HDMI 2.1 cables (not included) and the Micro-USB power cable to complete this affordable Ultra-High-Definition, 8K HDMI solution - no software/hardware configuration or complicated settings required. Full backward compatibility with 4K@60Hz, 4K@30Hz and 1080p displays ensures that it will work with any HDMI source or destination device. This 8K Switch is great for digital signage applications, where you want to display multiple source devices at different times or for sharing a high-end projector between multiple high-end sources.

Effortless operation with automatic or manual switching
This switch ensures effortless operation with automatic switching that detects and selects a newly connected device, which is also useful when the unit is required to be out of sight. It supports manual operation too, using the included IR remote control or the built-in front panel toggle switch.

Certificates



Certification



CE FCC RoHS REACH UKCA


Features



Bandwidth



48 Gbit/s


Bandwidth



1200 MHz


Cable length



0.8 m


Connector contacts plating



Gold


Dolby technologies



Dolby Atmos, Dolby Vision


HD type



8K Ultra HD


HDCP



Yes


HDCP version



2.3


LED indicators



Yes


Material



Metal


Maximum refresh rate



60 Hz


Maximum resolution



7680 x 4320 Pixels


Plug and Play



Yes


Product colour



Black


Supported video modes



480p, 576i, 720p, 1080i, 1080p, 1440p


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-20 - 80 �C


Package dimensions



Gross Weight (Package, kg)



0.21 kg


Packaging content



Cables included



USB Type-A to Micro-USB Type-B


Manual



Yes


Quantity per pack



1 pc(s)


Remote control included



Yes


Ports & interfaces



DC-in jack



Yes


HDMI in



2


HDMI ports quantity



3


HDMI version



2.1


Number of HDMI outputs



1


Video port type



HDMI


Power



Power consumption (max)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.16 kg


Product Depth



9 cm


Product Height



1.4 cm


Product Width



4.4 cm


Vendor information



Brand Name


Manhattan


Warranty



1 Year(s)
