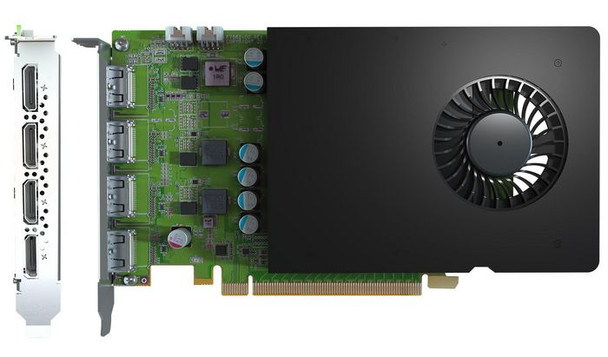

Matrox D1450-E4GB D1450 PCIe x16 Quad graphics D1450-E4GB

Matrox D-Series D1450 Quad HDMI Graphics Card

Product Info:
Purpose-built to drive next-generation video walls, the Matrox� D-Series D1450 quad-monitor graphics card powers up to four synchronized 4Kp60 displays from a single graphics board. A full-height, Gen 3 PCIe� x16 card with four native HDMI� connectors, D1450 delivers smooth video playback and exceptional graphics performance for a wide range of commercial and critical 24/7 video wall applications, including control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. As part of the Matrox video wall portfolio, D1450 also offers a complete range of video wall software, APIs, SDKs, and libraries, allowing OEMs, system integrators, AV installers, and developers to create custom control functions and applications for any video wall installation.

�Matrox D-Series HDMI and DisplayPort cards
�Advanced capabilities:�Drive up to four high resolution displays (HDMI or DisplayPort).
�Experience smooth video playback and graphics performance with up to 4 GB of graphics memory.
�Drive up to 16 synchronized displays and reduce tearing by framelocking up to four D-Series cards together
�using board-to-board framelock cables - also save slot space as a separate card is not needed for the synchronization.
�Run the latest professional applications with its support for Microsoft� DirectX� 12, OpenGL�
�Prevent loose cabling with secure connectors.
�HDCP compliant:�Display HDCP-protected content with D-Series graphics cards.
�Capture and display of HDCP-protected content on video walls by coupling D-Series with Matrox Mura IPX capture cards
�Proven video wall ecosystem:�Add best-in-class, multi-channel 4K capture, encode, decode, and display capabilities by combining D-Series with Matrox Mura IPX capture cards.
�Drive up to 64 1920x1080p60 displays by pairing D-Series with multiple Matrox QuadHead2Go� multi-monitor controllers.
�Create artistic video walls by pairing D-Series with multiple QuadHead2Go multi-monitor controllers.
�Custom control:�Customize your setup with the easy-to-use Matrox PowerDesk� desktop management software.
�Deploy tailor-made display configurations including stretched or independent desktops, clone mode, pivot, bezel management, edge overlap, and more.
�Easily manage your video walls with the intuitive Matrox MuraControl� software.
�Develop custom functions and/or personalized applications using the Matrox video wall APIs, SDKs, and libraries.
�Applications:�Digital signage, process control, military, house of worship, corporate communications, retail, industrial, automation and production, security

Design



Certification



Regulatory compliance: FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Environmental compliance: EU RoHS, China RoHS, REACH


Cooling type



Active


RoHS compliance



Yes


Memory



Discrete graphics card memory



4 GB


Graphics card memory type



GDDR5


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Performance



DirectX version



12.0


Dual Link DVI



No


HDCP



Yes


OpenCL version



1.2


OpenGL version



4.5


PhysX



No


TV tuner integrated



No


Ports & interfaces



HDMI ports quantity



4


HDMI version



2.0


Interface type



PCI Express x16 3.0


Power



Power consumption (typical)



47 Watt


Processor



Graphics processor family



NVIDIA


Maximum resolution



4096 x 2160 Pixels


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



20.2 cm


Product Width



12.7 cm


System requirements



Minimum system requirements



Single available PCIe x16 slot, 4 GB of system memory


Windows operating systems supported



Windows 10 Pro x64, Windows 10 x64


Technical details



Harmonized System (HS) code



84733020


Sustainability certificates



RoHS


Vendor information



Brand Name


Matrox


Homepage



https://www.matrox.com/graphics/en/products/video-wall/d-series/d1450/


Warranty



3 Year(s)
