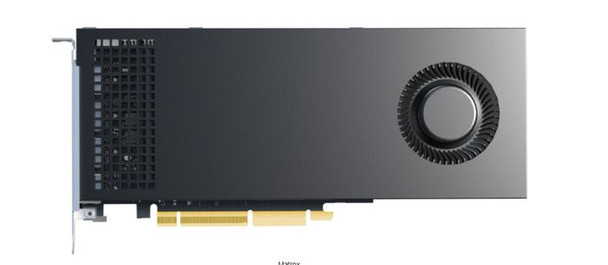

Matrox LUMA-A380P Standard height single slot LUMA-A380P

Matrox LUMA A310F

Low-profile PCIe Gen4 x16 (x8 electrical) quad graphics card delivers increased performance for small form factor systems. 

Drive two 8K displays or up to four synchronized high-resolution displays or projectors—up to 5K60—from a single LUMA A310F graphics card. Designed and built for reliability, stability, and ease of deployment, these PCI Express® 4.0 x8 boards with four Mini DisplayPort™ 2.1 connectors deliver superior graphics performance for today’s 8K HDR applications. The LUMA A310F graphic cards are ideal for multi-screen desktops, workstations, and digital signage players in commercial and critical environments. Matrox LUMA Series is powered by Intel® Arc™ graphics.


Single slot. Low profile.

Install LUMA Series boards in a wide range of small form factor and full-height systems and use only a single slot—thanks to their low-profile design. With LUMA A310F and its fanless board design, you can experience increased product longevity and minimized risk of failure in mission-critical environments.

Low power. Maximum efficiency.

LUMA A310F's low power consumption at 50W offers vendors simpler integration and a lower cost of ownership. Its low power consumption means you can install multiple cards in one system while using less power. LUMA A310F also eliminates the need for external power supplies and additional cabling for your video wall.

Advanced capabilities

With up to 4 GB of graphics memory, LUMA A310F graphics cards bring superior video playback and performance to a wide variety of video wall applications. Support for Microsoft® DirectX® 12 Ultimate, OpenGL® 4.6, OpenCL™ 3.0, Vulkan® 1.3, and Intel® oneAPI Video Processing Library (oneVPL), and OpenVINO™ enables you to run the latest professional applications.

HDCP compliant

LUMA Series graphics cards are designed for a range of multi-display desktop applications in control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. HDCP compliance makes it possible to display protected content.

Long product lifecycle

Benefit from a product longevity of five years and dedicated customer support. Your product carries a three-year warranty and has an available extended warranty to ensure maximum protection.

Design



Bracket height



Full-Height (FH)


Certification



• Regulatory compliance: FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Class B, UKCA (United Kingdom) Class B • Environmental compliance: EU RoHS, China RoHS, REACH


Cooling type



Active


Form factor



Full-Height/Full-Length (FH/FL)


Number of slots



1


Memory



Discrete graphics card memory



6 GB


Graphics card memory type



GDDR6


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Performance



DirectX version



12 Ultimate


HDCP



Yes


HDCP version



2.3


OpenCL version



3.0


OpenGL version



4.6


Ports & interfaces



DisplayPort version



2.1


DisplayPorts quantity



4


Interface type



PCI Express x16 4.0


Power



Power consumption (typical)



75 Watt


Processor



Graphics processor



Arc A380


Graphics processor family



Intel


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Height



0.69 cm


Product Width



1.68 cm


System requirements



Minimum system requirements



Single available PCIe 3.0 (or newer) x8 slot, Resizable BAR (reBAR) or Smart Access Memory (SAM)


Server operating systems supported



Windows Server 2022


Windows operating systems supported



Windows 10, Windows 11


Technical details



Warranty period



3 year(s)


Vendor information



Brand Name


Matrox


Warranty



3 Year(s)
