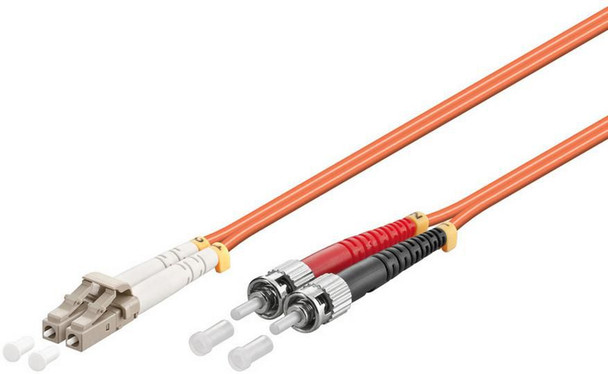

MicroConnect FIB412005-2 LC/UPC-ST/UPC 5m OM2 FIB412005-2

The 50/125�m OM2 multimode fiber optic cable is optically tested for insertion loss to ensure high quality. It is very cost-effective for network cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and any place where fiber patch cables are needed. OM2 patch cords are manufactured using LSZH cables and conform to IEC, EIA TIA or Telcordia standards.

Features



Cable length



5 m


Cladding diameter



125 �m


Connector 1



LC/UPC


Connector 1 gender



Male


Connector 2



ST/UPC


Connector 2 gender



Male


Core diameter



50 �m


Fiber mode structure



Multi-mode


Fibre optic type



OM2


Halogen-free



Yes


Insertion loss



0.3 dB


Jacket material



Low smoke zero halogen (LSZH)


Product colour



Orange


RoHS compliance



Yes


Operational conditions



Operating temperature (T-T)



-40 - 85 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Attenuation (max)



0.4 dB/km


Package dimensions



Gross Weight (Package, kg)



0.08 kg


Product dimensions



Net Weight (Product, kg)



0.07 kg


Vendor information



Brand Name


MicroConnect


Warranty



25 Year(s)


Weight & dimensions



Bending radius



6 cm


Cable diameter



2 mm
