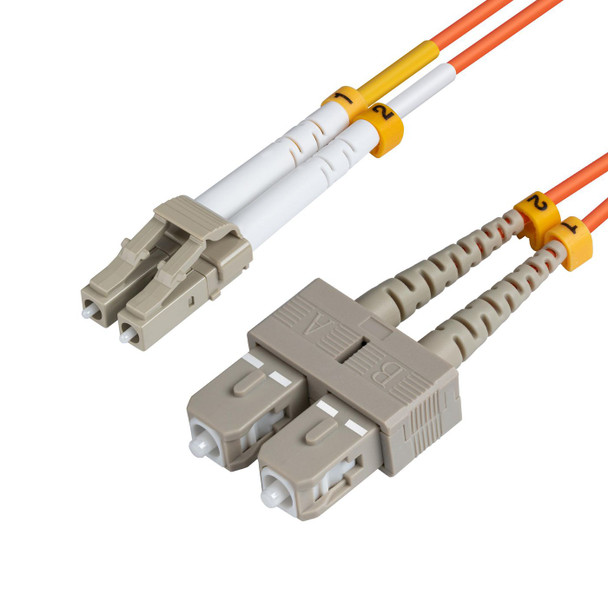

MicroConnect FIB420030 LC/UPC-SC/UPC 30m OM1 FIB420030

The 62.5/125µm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data centers, telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. OM1 patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.

Features



Cable length



30 m


Cladding diameter



125 µm


Connector 1



LC/UPC


Connector 1 gender



Male


Connector 2



SC/UPC


Connector 2 gender



Male


Core diameter



62.5 µm


Fiber mode structure



Multi-mode


Fibre optic type



OM1


Halogen-free



Yes


Insertion loss



0.3 dB


Jacket material



Low smoke zero halogen (LSZH)


Product colour



Orange


RoHS compliance



Yes


Operational conditions



Operating temperature (T-T)



-40 - 85 °C


Storage temperature (T-T)



-40 - 85 °C


Other features



Core / cladding diameter



62/125 µm


Package dimensions



Gross Weight (Package, kg)



0.1 kg


Product dimensions



Net Weight (Product, kg)



0.09 kg


Vendor information



Brand Name


MicroConnect


Warranty



25 Year(s)


Weight & dimensions



Cable diameter



2 mm
