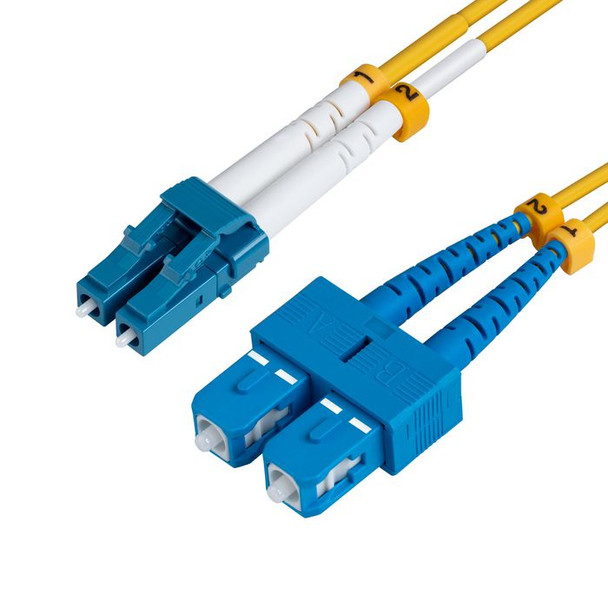

MicroConnect FIB421030 LC/UPC-SC/UPC 30m OS2 FIB421030

Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.

Features



Cable length



30 m


Cladding diameter



125 �m


Connector 1



LC/UPC


Connector 1 gender



Male


Connector 2



SC/UPC


Connector 2 gender



Male


Core diameter



9 �m


Fiber mode structure



Single-mode


Fibre optic type



OS2


Halogen-free



Yes


Insertion loss



0.3 dB


Jacket material



Low smoke zero halogen (LSZH)


Product colour



Yellow


RoHS compliance



Yes


Operational conditions



Operating temperature (T-T)



-40 - 85 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Core / cladding diameter



9/125 �m


Package dimensions



Gross Weight (Package, kg)



0.1 kg


Product dimensions



Net Weight (Product, kg)



0.09 kg


Vendor information



Brand Name


MicroConnect


Warranty



25 Year(s)


Weight & dimensions



Cable diameter



2 mm
